Waste Pet/HDPE/LDPE/PP/PE Bottles Films Woven Bags Plastic Recycling Pelletizing/Granulator/Shredder/Flakes Scrap Crushing Washing Line/Machine

Product Description

Product Description
HDPE bottle washing recycling line
Name: HDPE bottle washing recycling line
Raw materials: HDPE waste plastics
01 - Project introduction
The HDPE washing recycling system is used to treat all kinds of HDPE waste plastics. The processed HDPE can be used to produce plastic granules and make plastic products. HDPE plastics are mainly used to produce various packaging materials, well known as bottles and barrels. Generally, large-size HDPE materials need to be shredded first, and small-size HDPE materials can be crushed directly. The different application places of HDPE materials determine different impurity residues, and we can design and adjust the corresponding plant according to other impurity residues. The HDPE washing recycling line is suitable for the recycling of PP materials of similar size.
02 - Processing flow
03 - Advantages 1. Designed for rigid plastics with a wall thickness ranging from 1-25mm 2. Minimizes the recycling water flow rate and evaporation losses 3. Wear resistant design to maximize the consistent running of the system and minimize operational costs 4. High speed washing system with corresponding speed according to material type 5. The under-water force-washing paddle of the washing tank maximizes the washing efficiency 6. Mechanical and thermal drying system minimizes the moisture of the end product 7. High speed washing and drying can be set at suitable intensity to avoid over friction 8. System automation to ensure components actions are linked, system capacity is maximized, and system protected against interfering material 04 - Technical Feature

It is suitable for recycling plastic products with high toughness and thickness between 1-25 mm. Circulating water is used to ensure the cleaning effect while controlling water consumption. The crushing system adopts a wear-resistant design to ensure the long-term continuous operation of the system. The high-speed centrifugal washing system applies the corresponding blade striking force to different materials at the most suitable rotation speed to achieve the best cleaning effect. Substantial pressure underwater washing to remove residual impurities to the greatest extent Centrifugal de-watering and hot air drying system can be equipped according to the moisture content set by production requirements After theoretical calculations and multiple actual measurements, the details of the mechanical operation of the crushing, washing, and drying parts are adjusted to avoid material loss due to excessive processing. The whole line is automatically controlled, and the units of the system are operated in association with each other, which maximizes the production capacity and has a predictive function for possible abnormal situations to ensure the safety of the system to the greatest. ate, and degree of automation. In recent years, by actively absorbing Europe's valuable experience in film (PE) and woven bag (PP) recycling, and combined with our company's many years of waste plastic recycling experience, we Manufactured updated PP/PE floating washing line to realize efficient coarse crushing, fine crushing, washing and discharging, dehydration and semi-plasticization

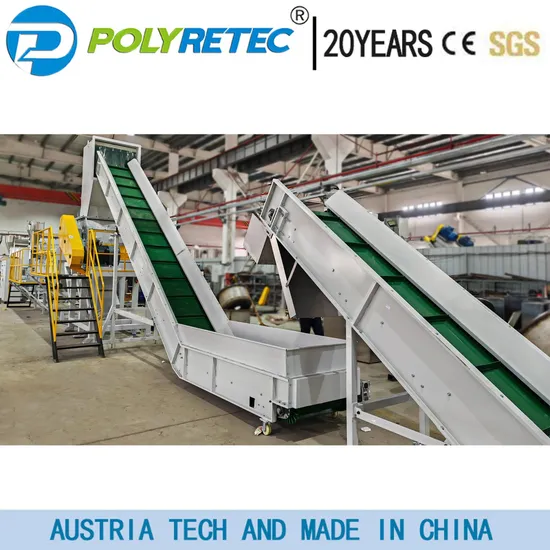

Detailed Photos


05 - Project parameters

Model	Capacity	Installation power	Space	steam	compressed air	Water
PEPP500	500kg/h	98kw	250m2	*	0.5m3	2m3
PEPP1000	1000kg/h	150kw	400m2	*	0.5m3	2m3
PEPP2000	2000kg/h	230kw	700m2	*	0.5m3	3m3

06 - Unit consumption

No.	Name	Consumption/ton	Serial number	Name	Consumption /ton
1.	electricity	50-80kw	3.	Clean agent (option)	2-4kg
2.	Steam (Option)	100-200kg	4.	Water	0.8-1.5T

Certifications

Packaging & Shipping

Installation Instructions
Customers:
ABOUT US

Suzhou Polytec Machine Co LTD focuses on the R&D and manufacturing of complete set of waste plastic recycling and processing systems and has provided services to customers in more than 30 countries through high-quality customized solutions, professional real-time technology and after-sales service. POLYTEC is currently working on four directions: 1. Waste plastic cleaning and classification: waste plastic films, bags, barrels, bottles, etc. are broken and cleaned, and plastics of different materials are separated, which are directly used in downstream industries such as recycled plastic granulation; 2. Recycled granulation of waste plastics: recycled granulation after cleaning of factory materials and post-consumer plastics; 3. Development of key machinery for recycling and recycling: R&D and manufacturing of key models for different materials in different industries, and provide key equipment for various process routes; 4. Waste electronic waste treatment: Provide system-wide process design and development and reuse for the growing consumer electronic products. 5. Design and implementation of project engineering: Our company provides guidance on plant design layout in the early stage of the project, and the overall installation of on-site water and electricity

Technology:

With Austrian Technology & Made in China Complete machine range: waste plastic washing line and pelletizing line Use our own factories to manufacture waste plastic recycling machines With many patents

Team:

Our CEO with over 20 years' rich experience in international trade business Our staff have over 15 years' rich experience in machine R & D, manufacturing and testing field, assembling workers with over 5 years' rich experience in our industry

Certificates:

With CE certificate Can meet UL/ISO/ standards With more than 15 national patents.

Profession:

English, French are available Customized machines are welcomed Instructions and other files are equipped The machine supports the third-party inspection for quality assurance

Services:

Perfect pre-sales service and after-sales service Support machine testing by using customer's raw material After--sales machine testing service is available.

Sample projects:

We already provided machines for customers over 30 countries, such as America, Mexico and so on. Some projects can be visited for reference.

SERVICE SUPPORT

Sales service

Common problems with our plastic recycling machines

1,How do I get a quick response from the product?

You can send email for our product details and we can also chat in quick tools such as WeChat, WhatsApp, Viber, LinkedIn, Facebook, etc.

2,How soon can I get a quotation?

For most projects, we can quote you within 24 hours once we know the necessary information to recycle the raw material.

3,Can I have a custom design?

We design and build each project according to the needs of our customers. Customization is based on requirements (e.g., 480V60Hz in the US, 440V/220V60Hz in Mexico, 380V60Hz in Saudi Arabia, 415V50Hz in Nigeria).

4,Is there a minimum order requirement?

Due to the large daily production capacity and high freight cost, our minimum order quantity is 1 set, but we can help to choose several colors. It is recommended that you order 20 "GP or 40" HC to reduce unit price and shipping cost.

5,What are your office hours?

You can contact us at 8 o 'clock. M. 5 PM to 5 PM +8 PM, Monday to Saturday, except Chinese national holidays.

6,Do you have a price list?

We are a professional plastic recycling machine manufacturer. We have different models, even for the same material type of recyclers, it is recommended to ask for price/quotation according to actual needs (e.g. Ability or your rough budget).

7,A: How do I know If I can trust your order?

We have been in business since 2003 and are committed to delivering 100% customer satisfaction. If the customer allows access, you can access them.

Address: zhangjiagang city (nearby shanghai city) ,china Thanks for your reviewing and look forward to cooperate with you soon

---
