Fiber Laser Cutting Machine for Plate, Su-3015 6000W, Laser Sources Max6000 Max Cutting Thickness 25mm for Carbon Steel 18mm for Stainless Steel

Product Description

SU-3015 6000W Fiber Laser Cutting machine for Plate
Product Description
SU-3015-6000W Fiber laser cutting machine is a cost-effective fiber laser cutting machine designed for the current needs of the sheet metal processing industry, equipped with strategic cooperation 6000W laser. The machine uses key components with a global quality assurance and more than a decade of experience with laser equipment, which makes this machine a popular fiber laser cutting machine immediately after its launch.

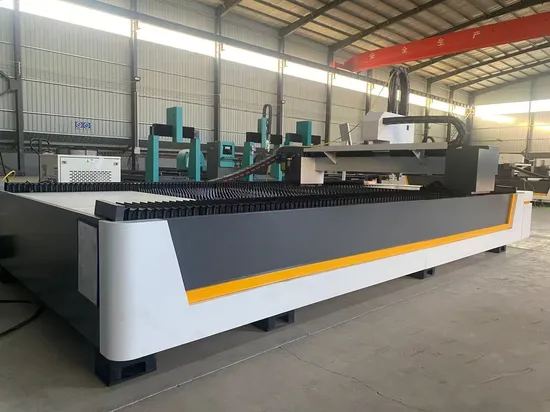

Product Appearance:
Cutting Sample
Product Parameters

Name	Paramerers	Unit
Machine Model	1530
Laser Source	Max6000	w
Water Cooler Power	6	kw
Software	Raytools
Guide	Taiwan
Rack	Vastun, Germany
Servo Motor	Leadshine
Reducer	Japanese SHIMPO
Minimum Cutting Width	0.08-0.1	mm
Maximum Cutting Thickness	25Carbon Steel	mm
	18Stainless Steel
Maximum Moving Speed	100	m/min
Electricity Requirements	380/50,60	v/hz
Graphic Format Supported	PRO/E.UG, Solidworks
Acceleration	1	G
Total Power	30	kw
Presser Of N2/O2/AIR	15-20/6-8/15-30	bar
Total Weight	3.5	t
Work Per Day	16	h
Lay Out	4.4*2.28*1.85	m
Oil Box	Auto Oil Injection System
Delivery Time	20	days
Dimension (L*W*H)	4250 *2260*1850	mm
Size In Transportation (L*W*H)	4400*2280*2100	mm

Feature and Components of Machine
4.1 Control Raytools
Raytools software is a three-dimensional cutting software, you can directly read UG, SolidWorks software export IGS format files, automatically extract the section to be cut and the track to be cut, without manual editing and selection.
Fast and convenient automatic leveling and center correction function eliminates the cumbersome manual operation, improve the accuracy of cutting; automatically according to the size of the pipe to calculate the pipe rotation and single-sided cutting head when the lifting height, to avoid cutting the process of collision.But also greatly reduces the single-sided cutting when the unnecessary lift, save time.
S&A or HANLI Water Chiller 6000W
When laser head cut metals, there will produce some hot energy in laser head and laser device. Water chiller is for cooling this two parts. Laser head part, mainly cooling the mirrors.Temperature in the water chiller is auto adjustment, mainly set up with 25 degree around.Water in chiller should be pure water.(one week change one time) Filter (3 month change one time)
Max 6000W laser source
Max laser has higher electro-optical conversion efficiency (>30%), higher and more stable optical quality, stronger altitude stress-resisting capacity and it applies optimized second-generation fiber transmission system to ensure more stable and more sophisticated cutting effect in thick sheet cutting. This machine applies to many application scenarios: cutting, welding, holing, medical device processing, etc., with a narrow seam of the cut sheet and bright section. Compared with same lasers,
It has obvious advantages.
-High electro-optical conversion efficiency
- Altitude stress-resisting capacity
-Sheet cutting efficiency
-Customized output fiber length
-Maintenance-free operation
-Wide modulation frequency range
Voltage Regulator
Model: 80KVA
Raytools BM06K-Laser Cutting head
The BM06K series Laser Cutting Heads are released based on the BM06K from Switzerland RAYTOOLS AG in 2017, which are suitable for medium and high power fiber lasers in industrial applications. Compared to the BM06K series, the upgraded version of BM06Kseries in dust-proof design and customer experience are made a comprehensive optimization. As we all know, collimation lens is very likely to be contaminated when inserting or removing optical fibers,so the BM06Kseries are avoided this risk by adding an top protective window to the collimation assembly. At the same time, the bottom protective window structure is also fully upgraded, we add a dust cover on it. Double protection design enhance the user experience in the replacement of protective window greatly, and the lens contamination risk is almost zero.
Features
-Optimized optical configuration, smooth and efficient airflow design
-Comprehensive upgrade of the dust-proof design, Double protection,the risk of contamination of the lens is almost zero
-The laser head body is increased anti-collision function
-Turntable focus adjustment and can be manually corrected, fine and flexible adjustment, adjustable range is 20mm,accuracy is 0.05mm
-With a variety of optical interfaces, can be adapted with a variety of fiber lasers
-Collimation lens, focusing lens and nozzle are all have cooling structures
Specifications
Power Rating ----≤4KW
Clear Aperture ----28mm
Cover Glass ----φ24.9mm*1.5mm(Top);φ27.9mm*4.1mm(Bottom)
Assist gas Pressure ----≤25bar
Workingshope Photos
Company Profile
FAQ
Q1: Are you a manufacturer or trading company?
A1: We are a manufacturer.
Q2: Can the machine parts be changed according to my requirements?
A2: Yes, we will try our best to give you the best products.
Q3:What is your payment term?
A3:30% T/T deposit paid in advance, 70% balance paid before shipping.
Q4: How can I get to your factory?
A4:We could pick you up at the airport or high-speed rail station.
Q5: What service can you provide before order?
A5:About the pre-sale service. We provide you answers to all your questions on our machines, such as technical parameters, price, payment terms, etc. If you wanna visit our factory and check the machines, we also can send you an invitation letter and give you our warmest welcome.
Q6: Can you finish the machine during the delivery time?
A6:We will finish the machine in time according to the determined lead time.

---
