2L 5L Water Plastic Bottles Oil Bottles Full Automatic Blow Molding Machine China Machinery

Product Description

2L 5L water plastic bottles oil bottles full automatic blow molding machine China machinery

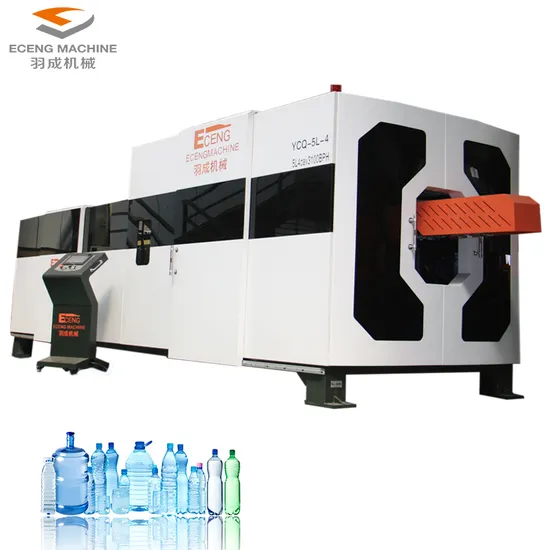

model:YCQ-5L-4
5l fully automatic pet bottle blowing machine Q series linear bottle blowing machines are used in the production of PET water bottles, hot filling bottles, carbonated beverage bottles, edible oil bottles, and pesticide bottles.Eceng Machinery's Q series linear bottle blowing machine stretches preforms by using a servo motor-controlled stretch rod. The advantage is that it can be stretched in sections,and positioning of the preform is at first in order to ensure the verticality of the preforms during stretching, then secondary stretching.Ensure the uniformity and consistency of each preform stretching.At the same time,bottle blowing machine has a fast stretching speed and precise position.
5l fully automatic pet bottle blowing machine Q series linear bottle blowing machine features:
1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.
3. servo transmission system, high positioning accuracy, fast speed, good stability and reliability.
4. suitable for flexible production of small quantity and various bottle shape,wide range of applications,meet customer needs.
5. increase energy using efficiency,increase productivity per unit of time.
6. manual and automatic methods of operation, human-machine interface control, simple operation.
7. servo transmission system, high positioning accuracy, fast speed stability and good reliability.
8. safety self-locking device in each mechanical action,when a certain process fails, the program will automatically switch to a safe state.
9. heat and noise are significantly reduced compared with YCQ series.
10. less than 0.2% scrap rate for finished bottle .

Item		YCQ-5L-4
Bottle type specification	Cavity	4
	Theory output	2500-3000
	Max.volume	5L
	Bottle mouth maximum overall diameter	150mm
	Bottle biggest diameter	180mm
	Bottle maximum height	400mm
Power specifications	Light tube quantity	48pcs
	Light tube power	1.5KW
	Maximum heating power	72KW
	All electric machine installation	75KW
	Actual consumption	52.5KW
Air pressure specification	Work pressure	7-9kg/cm
	Low-pressure gas consumption	1600L/min
	Blow bottle pressure	25-35kg/cm
	Higher -pressure gas consumption	2000-3000Ltr/min
Forzen water specification	Work pressure	5-6 kg/cm
	Temperature range	10ºC
	Consumption	12000kcal/hr
	Forzen water flow	88L/min
Machine specification	Size of the machine	5.2x2.0x2.0
	Weight of the machine	6ton

5l fully automatic pet bottle blowing machine Q series bottle blowing machine adopts advanced microcomputer PLC control system, stable performance; servo transmission system, high positioning accuracy, fast speed, stable and reliable.
Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic temperature-removal device to ensure the constant temperature of oven.
