Powerjet Automatic Extrusion Blow Molding Machine Eb120u

Product Description

EXTRUSION BLOW SERIES

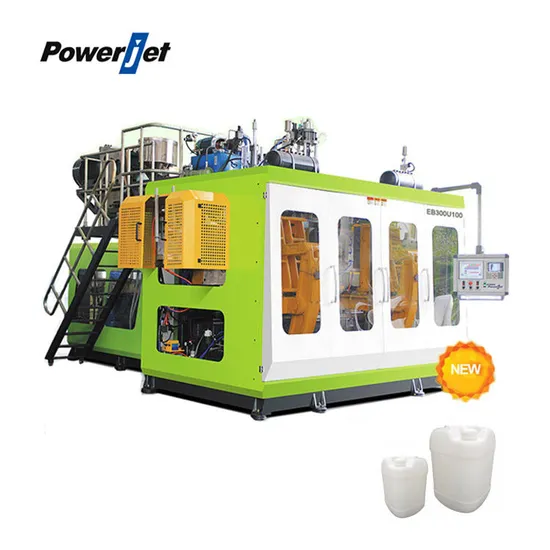

HIGH-SPEED DOUBLE STATION EXTRUSION BLOW MOLDING MACHINE EB120U/EB300U
Powerjet Double Station Extrusion Blow Molding Machine EB120U/EB300U is specialized for manufacturing bottles and containers which under 30L.
Max Bottle Capacity - 30(L)
Clamping Force - 200~240(KN)
Extrusion Weight(HDPE) - 150~180(kg/hr)
Applications - Wide Range Of Bottles For Daily necessities, toiletries, beverages, water tanks, bottles, etc.
FEATURES:
1:Toggle balance clamping structure, with platen opening & clamping and mold platen movement by a linear guide, to achieve low friction and high speed.
2:Based on the Finite Element Analysis design, and platen, toggle and platen frame made in high intensity nodular cast iron.
3:High speed mold clamping oil cylinder with differential speed function, and high speed mold moving cylinder with special anti-shock cushion valve structure.
4:Specially designed to screw with high L/D ratio insures good plasticizing and stable extrusion; high precision and no part line die head guarantees customers' top quality requirement.
5:Multi-screw & multi-die head can be adopted to improve the quality of the product and lower down the cost of material.
6:Multiple-way PID controlled temperature heating is precise and stable.
Product Description

Product Parameters

MODEL	UNIT	EB120UW90	EB180U100 EB180UW100	EB300U100
Max.Product	L	12	20	30
Clamping Force	kN	190	260	300
Max. Mold Size(W x H)	mm	730x450	600x500	850x780
			800x460
Screw Diameter	mm	Φ90	Φ100	Φ100
Screw L/D Ratio	L/D	25	24	28
Screw Rotary Speed	RPM	60	60	60
Extrusion Weight(HDPE)	kg	150	180	210
Extrusion Motor Power	kW	37	55	75
Pump Motor Power	kW	22	22	22
Heating Capacity	kW	27	30	32
Operation Pressure	Mpa	0.6~0.8	0.6~0.8	0.6~0.8
Air Consumption	m³/min	4.0	4.0	5.0
Cooling Water Consumption(25ºC)	L/min	300	300	400
Machine Dimension (LxWxH)	mm	4800x4060x2900	5300x4600x3100	8300x5050x3600
Machine Weight	kg	9500	10000	16000

Packaging & Shipping

Company Information
Our Services
FAQ
Q1: Are you a manufacturer or trading company?
A1: We are a factory for plastic machines. Over 23 Years Experience In Manufacturing Injection Molding Machine And Blow Molding Machine.
Q2: Delivery time?
A2: Normally Machine Delivery from the factory in 0-60 days after receiving the down payment. (During Chinese Public Holidays like National Day or Chinese New Year, the delivery time should be 10-30 days longer accordingly).
Q3: Where is your factory located?
A3: Our factory is located at No.5 Chuangxin Xi Road, Leping Town, Sanshui District, Foshan City, Guangdong Province, China. 1h drive from Guangzhou to our factory. Welcome to visit our factory.

---
