30-200mm PVC Shrinkable Film Blowing Machine for Bottle Cap Packing Film

Product Description

30-200mm PVC shrinkable film blowing machine for bottle cap packing film
Usage:
This machine is suitable for blowing film of various specifications by tube film process of PVC plastic resin. The film has the advantages of good transparency, good gloss and high shrinkage. It is a new popular packaging material nowadays. It is widely used in food, beverage, tea, glass products, handicraft, sanitary ware and cosmetics. Outerwear of products, electronic products, etc.
Features:
1. The unit is mainly composed of plastic extruder, air ring, nose device, traction device, cooling device, heating expansion device, winding device, heating system and electronic control device.
2. The key parts of screw and barrel are made of 38GrMoAIA high-quality alloy steel, which has high hardness, wear resistance and corrosion resistance after finishing and ammoniation treatment.
3. The new screw with a length of 1:26 is suitable for mixing and plasticizing polyvinyl chloride (PVC) plastics with high melt viscosity and poor thermal stability.
4. The automatic temperature control system is equipped to control the heaters and cooling fans of the fuselage so as to keep the temperature constant, accurate and in line with the technological requirements of film production and ensure the excellent quality of the heat recovery film.
5. The special structure of die head and air ring is favorable for plasticizing and cooling requirements.
6. Easy to operate, compact structure, centralized control and high degree of automation.
Technical Parameters:

SPECIFICATIONS FOR PVC Horizontal Hot Shrinkable Film Blowing Machine
Main Technical paramaters	Model	HRSJRM40	HRSJRM45
	Screw Dia	40mm	45mm
	Screw L/D	28:1	28:1
Main Technical paramaters	Capacity	18-35kg/h	35-45kg/h
	Film Max folding width	30-200mm	150-400mm
	Film thickness	0.02-0.08mm	0.02-0.08mm
Main performance parameters	Max Horizontal shrinkage	40%-60%	40%-60%
	Vertical Shrinkage	4%-25%	4%-25%
	Main motor	7.5kw	11kw
	Machine weight	1800kg	2000kg
	Meight size	9*1.6*1.5M	9*1.6*1.5M

Spare parts configuration:
Cold cut air ring: Alloy cast aluminumSplint: Front and back splint are all stainless steel
Water ring: Stainless steel liner (2 pieces)
Automatic temperature control device 6 sets
Ironing case: Stainless steel liner
Ironing case rubber roller: Silicone roller
Motor: all CE certificate, Nanjing control
Frequency conversion: Shanghai master or Taiwan general
Air compressor: Xing bao brand (Made in Fujian) CE certification
Blower: Strong and low noise Type
Electrical appliances: CHINT
Total power:50 HZ 220V 3P ( All the electric parts will be subjected by the volt 220 V. )

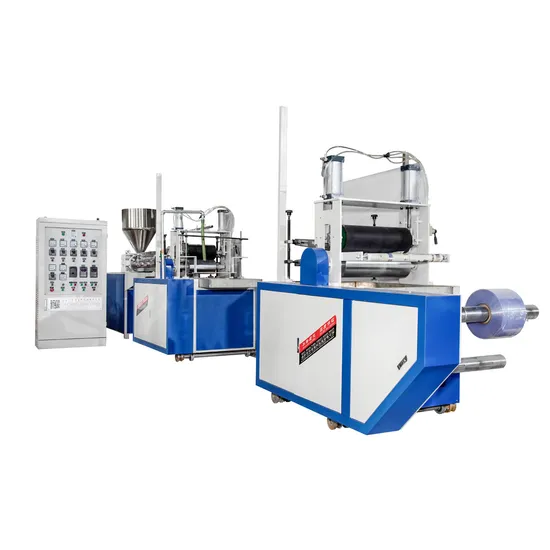

Machine photos:
Also we have vertical type PVC film extruder,
Samples:
CE certification:
Machine packing:

---
