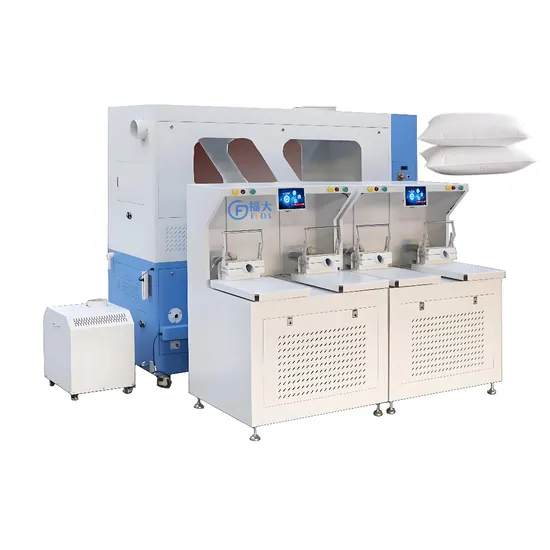

FUDA Automatic Four Nozzles Ball Fiber Pillow Filling Machine

US$12,888.00-26,888.00 1 set (MOQ)

Basic Info.

Model NO.
4 Ports with 4 Weighing Benches
Feature
Automatic Weighing, Charging & Suction, Quantitative Down Charging, Compact Size
Filling Valve Head
Four-Head
Product Name
Automatic Ball Fiber Pillow Filling Machine
Display Device
7" Touch Screen
Weighing Units
4 Scales
Filling Range
100-1500grams
Show Weight Accuracy
1gram
Nozzles Size
63mm,78mm
Filling Materials
Duck Feather, Goose Feather
Stuffing Materials
Ball Fiber, Polyester Fiber
Application
Pillow, Cushion, Lumbar Pillow
Daily Capacity
6000 plus pillows
Power
3Phase AC380V 7.5kw
Machine Weight
1000kg
Dimension(L*W*H)
3500*3000*2200mm
Air Supply
0.6-0.8Mpa
Air Compressor
22Kw
Transport Package
Wooden Case
Specification
4 Ports 4 Scales
Trademark
FUDA
Origin
China
HS Code
8479899990
Production Capacity
100sets/Month

Packaging & Delivery

Package Size
281.00cm * 116.00cm * 237.00cm
Package Gross Weight
1280.000kg

Product Description

Product Overview
H428C Automatic Feather Fiber Pillow Filling Machine with 4 Ports 4 Scales.FUDA Automatic Polyester Fiber Filling Machine with 4 Ports 4 Weighing Units, Automatic Weighing from 100 to 1500 grams, High Accuracy, one person can operate the machine effortlessly, daily capacity 6000 plus pillows. Product Description
Product Advantages
High precision The dynamic error accuracy is ±5%.
Control system - Compiled PLC Quickly, the communication speed rate: 0.4ms.
Touch screen - HD HMI Easy to learn and operate, Multi-language, sensitive touch.
Feeding Material - accuracy the error accuracy is controllable.
Filling Range - Max 1500g Quickly, 4-6 pillows/min; 4000-6000 pillows /day.
Dedusting recycling - Clean Dustless working environment, reducing raw material wastage.
Gear motor - low noise Low noise, high torque, long life, and easy maintenance.
Appearance - The Beauty of Simplicity Compact design, clean white, technology blue.
Product Parameters
Model NO. H428C
Product Name Automatic Pillow Filling Machine
Filling Ports 4 Ports
Filling Range 100-1500g
Display Accuracy 1g
Nozzle Size 63mm,78mm
Storage Volume 20-25Kg
Filling Materials Duck Feather, Goose Feather, Polyester Fiber, Ball Fiber
Application Pillow, Cushion, Lumbar Pillow
Daily Capacity 6000 plus pillows
Power Supply 3Ph AC380v 7.5Kw
Air Supply 0.6-0.8Mpa, 22Kw
Display Device 7" Touch Panel
Control System PLC with 4 Weighing Units
Footprint 3.5*3.0*2.0m(L*W*H)
Net Weight 1000Kg
Gross Weight 1280Kg
Transport Package Wooden Case
Specification 4 Ports 4 Scales
Trademark FUDA
Origin Shanghai
Applications
Detailed Photos
