US$12,800.00
|
1 Piece
(MOQ)
|
Basic Info.
Required Paper
Single Side PE Coated Paper
Paper Material
140-320G/M2
Opeartion Space
About 3000*3000mm
Specification
2.23*1.14*1.8m
Product Description

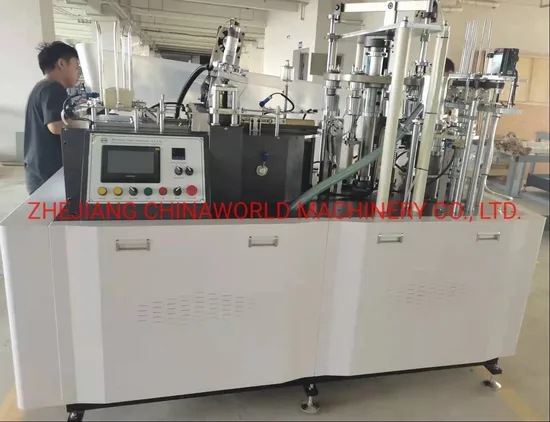

CW-90 Double Wall Paper Cup Making Machine Product Description
1.Two disks,Open cam
2.Ripple and double wall can be produced
3.Cup feeding by servo motor
4.Machine with ultrasonic,collecting table,Touch screen and PLC
5.Auto lubrication
6.High speed ,max speed 105pcs/min.stable speed 75-85pcs/min
Machine Detail
Product Parameters
| Paper Cup Size | 2.5-12oz |
| Paper Material | 140-320g/m2,One Side PECoated Paper Or Double |
| Speed | Max Speed:105pcs/min,Stable speed :85Pcs/min |
| Power source | 380V 50HZ |
| Heating total power | 5KW |
| Main motor | 1.5KW |
| Total Power | 7.5kw |
| Weight | 1600kg |
| Overall size | 2.23X1.14X1.8m |
| Air pressure | ≤0.4MPa(used for auto bottom paper feeding) |
| Operation person | 1person and more machines |
| Opeartion space | About 3000*3000mm |
| Note | Can be customized according to your requirements |
| |
Configuration list
| Configuration list |
| Name | Model | Origin | Remarks | QTY |
| Main motor | CH-25-1.5 | Taiwan | Chenggang | 1 |
| Frequency converter | Em60-1.5kw | Japan | Panasonic | 1 |
| Photoelectricity | PSE17-5DN | Korea | Ottonico | 3 |
| AC contactor | 0910 | France | France | 3 |
| Thermal couple | | Domestic | Huibang | 5 |
| Temperature control instrument | AI-208G | Domestic | Yudian | 5 |
| Botton | NP2-BA31 | Domestic | Chint | 12 |
| Relay | JZX-22F(D)/2Z | Domestic | Chint | 5 |
| Switching power supply | LRS-200-24 | Taiwan | Ming Wei | 1 |
| Circuit breaker | DZ47-60 1P C10 | Domestic | Chint | 6 |
| Circuit breaker | DZ47-60 3P D60 | Domestic | Chint | 1 |
| Exchange | CJX2-1810 220V | Domestic | Chint | 5 |
| Exchange | CJX2-4011 220V | Domestic | Chint | 2 |
Sample picture
