Basic Info.
Application
Liquid, Powder
Application Area
Food, Feed Processing Machine
Control System
PLC Control
Cooling Method
Air Cooling
Heating Method
Electric Heating
Main Material
Alloy Steel, Aluminum, Carbon Steel, Cast Iron, Stainless Steel
Mixing Capacity
1000L & Above
Safety Features
Overload Protection
Speed Control
Variable Speed
Temperature Control
With Cooling System
Materials
Mixing The Powder, Granule, Flake,Sticky Material
Range of Application
for Feed,Grain,Food,Chemical,Fertilizer Industry
Each Batch of Mixer Time
30-120s
Transport Package
Wooden Case or Nude Packing
Production Capacity
20-30sets Per Month
Packaging & Delivery
Package Size
200.00cm * 150.00cm * 160.00cm
Package Gross Weight
1500.000kg
Product Description

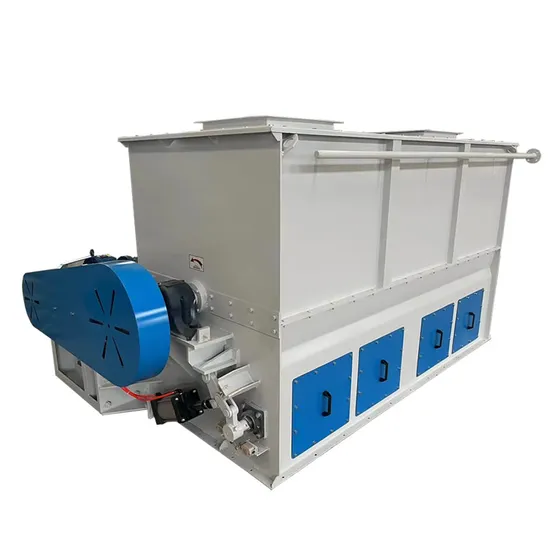

Product Description SSHJ double shaft paddle animal feed mixer, poultry feed mixer/ mixing machine
Usage:
SSHJ series double-shaft paddle type high efficiency mixer is widely used for mixing powdery, granular, flake, miscellaneous and viscous materials in feed, grain, chemical, medicine, pesticide and other industries.
Features:
(1) Short mixing cycle and high mixing uniformity: the mixing uniformity CV of general materials is less than 5% in 50-90s, which reduces the mixing time and improves the production efficiency of the feed plant.
(2) Loading variable range is large: loading coefficient variable range is 0.3 ~ 0.8, suitable for mixing with different proportion, particle size and other materials in many industries;
(3) Segregation does not occur when mixing: after the machine is evenly mixed within 1 minute, the classification phenomenon does not occur when the mixed materials continue to be mixed, and segregation will not occur because of the large difference in specific gravity, particle size and other physical properties;
(4) Fast discharging, small residual amount: the bottom adopts four-door structure, discharging quickly, less residual;
(5) Large amount of liquid: add 30% liquid can still mix the material evenly, that is, can mix sticky material;
(6) Adopt unique chain tensioning mechanism, assemble and disassemble, adjust quickly and conveniently;
(7) Discharge door reliable sealing: discharge door adopts double plane line contact sealing, reliable sealing, long service life, avoid the sealing strip is easy to break, difficult to buy, difficult to replace the difficulties;
(8) W - shaped mixing chamber, built-in air duct, integral base, side access door, beautiful appearance, convenient assembly, disassembly and maintenance. Product Parameters
| Model | Volume (m ³ ) | Capacity/batch (kg) | Mixing Time (s) | Homogeneity (CV ≤ %) | Power (kw) |
| SSHJ0.1 | 0.1 | 50 | 30-120 | 5 | 2.2(3) |
| SSHJ0.2 | 0.2 | 100 | 30-120 | 5 | 3(4) |
| SSHJ0.5 | 0.5 | 250 | 30-120 | 5 | 5.5(7.5) |
| SSHJ1 | 1 | 500 | 30-120 | 5 | 11(15) |
| SSHJ2 | 2 | 1000 | 30-120 | 5 | 15(18.5) |
| SSHJ3 | 3 | 1500 | 30-120 | 5 | 22 |
| SSHJ4 | 4 | 2000 | 30-120 | 5 | 22(30) |
| SSHJ6 | 6 | 3000 | 30-120 | 5 | 37(45) |
| SSHJ8 | 8 | 4000 | 30-120 | 5 | 45(55) |
Detailed Photos Structural characteristics and working principle
The machine is mainly composed of shell, rotor, machine cover, discharging mechanism, liquid spraying device and transmission device.
Cases Packaging & Shipping
Customized packing: wooden case, steel case, steel pallet.... FAQ 1. who are we?
We are based in Jiangsu, China, start from 2009,sell to Domestic Market(16.00%),Oceania(12.00%),South Asia(10.00%),Eastern Asia(10.00%),North America(9.00%),Northern Europe(9.00%),Central America(8.00%),Southeast Asia(7.00%),Eastern Europe(6.00%),Africa(5.00%),Western Europe(3.00%),South America(2.00%),Southern Europe(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Biomass fuel pellet production line,Livestock&poultry feed production line,pellet machine,wood pellet mill,drum dryer
4. why should you buy from us not from other suppliers?
Moren than 20 experiences of design,manufacturer the pellet mill, complete pellet production line and the spareparts with over 5 professional engineers for design and 5 teams for guiding installation
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese
Quality First And Everytime Good Quality!
Any demands, please kindly contact with me:
Carrie Huang(Sales manager)
>>
