New Product 4-20mA to Ethernet/RS232/RS485 a-D Transmitter with Modbus TCP

Product Description

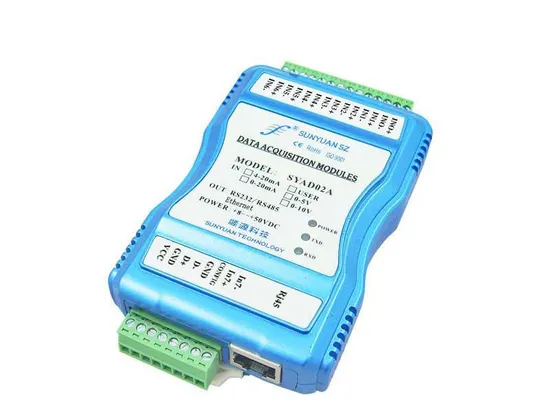

4-20mA to Ethernet/RS232/RS485 A-D Transmitter with MODBUS TCP
Features: Directly convert 4 to 20mA and other analog data into communication digital data for Ethernet and Can bus. Support 10M Ethernet RJ45 interface, support Modbus TCP communication protocol. Support RS 485/RS 232 serial ports extended, support Modbus RTU protocol. Measuring precision is more than 0.05%, do calibration on the precision of modules by computer is available. 8 channel analog input with common ground, 3KVDC isolation between I/O terminal and the system. Wide range auxiliary power supply wide range: 8 - 50VDC Unique external form, high reliability, programmable, DIN Rail 35 standard installation. User can programme to set address, baud rate, etc for the modules. Applications: Monitoring, measuring and remotely controlling the industrial field through local area network. Applied in the industrial intelligent system for Ethernet, RS232/485 can bus Gathering 0 to 10V/4 to 20mA signal and converting into Ethernet RJ45 output. Sensor signal A/D conversion, network control and long distance transmission. Ethernet multichannel analog data acquisition, monitoring and long distance transmission. Meters and instruments data acquisition and recording Monitoring operating data from electric equipments, transportation and other equipments system. Achieve the network operation in Environment protection equipments, security, medical equipments and other equipments.
Introduction: SUNYUAN SY AD 08-RJ45 series products achieve the analog data acquisition between sensor and host machine to detect analog signals or monitor remote equipments. Through setting the software, it can be applied in various types of sensor including: analog signal input, analog signal output and digital signal signal input/output. SY AD08-RJ45 series products can be applied in RS232/485 bus and RJ45 port in Ethernet industrial automatical control system, 4-20mA/0-10V analog measuring, monitoring and controlling, 0-1mA/0-30mV/small signal measuring, industrial site signal isolation and long distance transmission,etc. The products have the following functions: power supply isolation, input and output signal isolation, linearization, A/D conversion and RS485 serial or Ethernet communication. Each serial port can connect at most 256 pieces of SYAD08-RJ45 series modules, the communication methods adopt serial port ASCII character communication protocol or Modbus RTU protocol and Ethernet Modbus TCP protocol, its command set is compatible with ADAM modules, the configuration parameter can be set by users, and the module can operate well in the same can bus with the controlling modules from other companies to make it easy to programme through computer.
The Real Pictures, Multi-faceted picture display:


Factory Pictures:
Exhibition picture:
For more popular products, please click the following link to view directly. Thanks~
Commonly used two-wire passive isolation amplifier, isolation transmitter IC, Sunyuan product technical information download:
1,4-20mA (0-20mA) Current Loop Isolator IC: ISOS 4-20mA 2,4-20mA two-wire passive I/V conversion isolation transmitter IC: ISO 4-20mA-O series 3,4-20mA isolation controller (active signal PLC current loop active load) IC: ISO 4-20mA-E4,Two-wire passive sensor 4-20mA loop isolation distributor IC: ISO 4-20mA-F 5,Two-wire voltage signal power distribution isolation transmitter IC: ISO V-4-20mA
Commonly used active type (external auxiliary power supply required) isolation amplifier transmitter IC, product selection application data download: 1,ISO mV series: millivolt-level analog small signal dedicated isolation amplifier IC
2, ISO EM U(A)-P-O-T Series: Zero-point, gain-adjustable analog isolation amplifier isolation transmitter3, ISO EM A(U)-P-O-S Series: Input Distribution Isolation Transmitter IC 4, ISO EM-U(A)-P-O-O Series: Analog Input Isolation Transmitter with 1 to 2 Output Low Cost Small Size IC mounted Package 5, ISO EM A-P-O Series: 0-±10V Bilateral DC (Voltage/Current) Signal Isolation Amplifier Isolation Transmitter IC 6, DIN3 ISOEM U-P-O(A-P-O) Series: Single DIN35 rail mounting packaging low cost small volume isolation transmitter7,DIN 1X2 ISOEM U(A)-P-O Series: one input and two output DIN35 rail mounting packaging isolation transmitter
8,DIN 2X1 C-P-O Series: 2 input and 1 output analog average isolation transmitter 9,DIN 2X2 ISOEM U(A)-P-O Series: two in two out DIN35 rail mounting isolation transmitter10,DIN 1X3 ISOEM U(A)-P-O Series:one in three out DIN35 Rail mounting isolation transmitter 11,DIN ISO AC Series: Passive two-wire AC to DC signal isolation transmitter12,ISO EMH 4-20mA Series: High isolation barrier for track voltage monitoring 13,ISO F-P-O Series: Frequency Signal (FV/FI Conversion) Isolated Converter IC14,ISO U(A)-P-F Series: Analog Signal to Frequency Pulse Signal (V/F) Isolated Transmitter IC15,ISO EM RMS-P-O Series: Analog True RMS (RMS) Signal Isolation Transmitter Isolation Amplifier
16.Large current output type high precision signal transmitter

---
