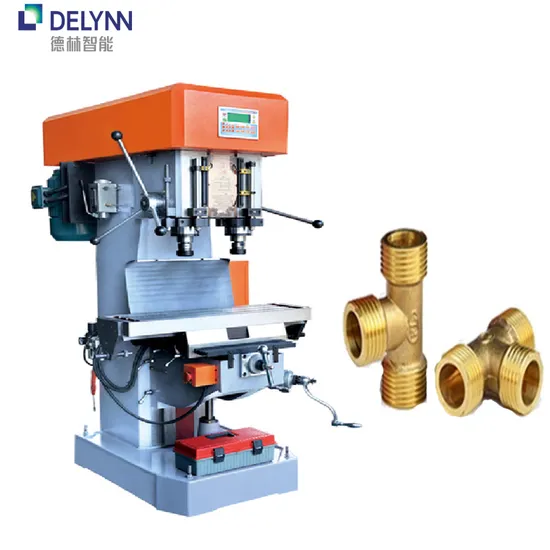

Delin Automatic Drilling Machine, Faucet Two-Station Vertical Tapping Machine

Product Description

Product Description
Product Description
Double Spindle Series:Pneumatic Double-Spindle Compound Machine Tool
Technical high Lights:
Applicable to batch part processing,drilling,tapping at one time with hight efficiency.
The slide base of working table uses air cylinder with buffer and pneumatic clamping,less vibration and clamp faster.
The slide base uses high-frequency quenching with lubrication,making the better perfomance.
It can achieve the function of double-drilling and double-tapping by choosing the AC-KT126*2 processor.
The total quantities of processing products can be displayed on the LCD Control panel.
Technical Parameters:

	Parameters Items	Units	Parameter
			ZX4132*2	ZX4150*2
Main spindles	Spindle number	unit	2	2
Worktable	Wortable Size	mm	600*230	800*230
	Worktable Stroke length	mm	150	240
Main Spindles	Spindle forms	--	NT30	MT4
	Spindle power	kw	3KW/4P	3KW/6P
	Spindle rotating speed	r/min	Left880,1400, right880,1400	Left675, right1000,675
	Spindle Outer diameter	mm	Dia86	Dia90
Machine Tool Specification	Machine Weight	kg	600	1200
	Machine Dimension	mm	1200*610*1450	1390*1110*1750
Control System	PLC

Our Double Spindle Series:

Packaging & Shipping
Abroad exhibition show
Company Profile
Company Introduction:Fujian Nanan Delin Machinery Manufacturing Co.,ltd
Delin Company Located in sanitary home Nanan,is the earliest professional casting equipment manufacturer in the southern parts of china.
With the area of 50000m2,350 workers including 65 middle&highclass professional technicians.
Main Products:Automatic molding machine,low pressure die casting machine,gravity casting machine,furnace,core shooting machine,mix sand machine,abrator,etc...
Widely used in plumbing,sanitaryware,car spares,valves.iron cast lines,etc
It provides a series of service,including technical conseling,mould designing,live training for staff,etc
Certifications
Q1: Can I have your quotation?A: First, please offer us the information of your material size, without these parameter, we are not able to recommend you the suitable machine.Q 2: How to operate and maintain the machine?A : First, we will provide a professional and detailed USER GUIDE to you with the machine; Second, we will debug the machine in the best status for you; At last, we also provide abroad technical training service.Q 3: Where is your factory located ? How can I visit it ?A : Our factory is located in Quanzhou city,Fujian province,China. You can fly to Jinjiang or Xiamen air port, we will pick you up.Q 4 :What's dimension of your workpiece ?A : In order to configure suitable size machine for you. we should get your info. We can professional design as your requirement.Q 5: Can you guarantee you quality?A : Of course. We are the manufacture factory ,more important, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.

---
