Qingte 60-100 Ton Gooseneck Detachable Lowbed Trailer Loyboy Semi Trailer for Sale

Product Description

Qingte 60-100 Ton Gooseneck Detachable Lowbed Trailer Loyboy Semi Trailer For Sale
Product DescriptionProvding supporting and processing on all types low bed trailer
One Line One Axle design
2 Axles low bed trailer
3 Axles low bed trailer
4 Axles low bed trailer
5 Axles low bed trailer
One Line Two Axles Design
3 Line 6 Axles Low Bed Trailer
4 Line 8 Axles Low Bed Trailer
Gooseneck Detachable Design
Fold Necking Low bed trailer
Extendable Low Bed Trailer
CKD/SKD Situation Available
OEM/ODM Acceptable
Low bed semi trailer is designed for stevedoring and transporting for Excavator , wheel loader or Other Heavy Duty Equipment. Lowbed semi trailer is designed according to the real market survy . The main points of the low bed semi trailer ( like gooseneck , suspention , side beam ) with reinforced process . So that , the lowbed trailer could run well for the final user.
Product Parameters

Item	Specification
Size	16,800*3000*1,250mm.
Body Sheet	Floor thickness: 4mm, checkered plate; Body material: high tensile steel.
Chassis	Heavy duty and extra durability designed I beam
Axle	3*16 tons axles (yuek, fuwa, bpw, L1 brand is optional )
Tire	315/80R22.5 tubless tires, 13 pcs (12R22.5, 11.00R20, 12.00R20.etc model is optional)
Rim	9.0-22.5
Suspension	Heavy duty mechanical suspension with spring leaf
Braking system	2 line air braking system with air tank, WABCO emergency relay valve, braking chambers and mechanical slack adjusters.
Electrical system	24V, LED lights. 7 pin electrical connector. Parking, stop, reverse, number plate and indicator lights conform to European standard, rear front and side reflectors.
Shot blasting	Chassis is comletely shotblasted to SA 2.5 grade,and painted with first layer of international Zinc Epoxy primer(30 Microns DEF),second layer international high built polyurethane under coat(40 microns DFT),THIRD AND FORTH LAYERS INTERNATIONAL alkyd FINISH TOP coat.total 80-100 microns. high quality painting. the whole trailer waxed.
Landing gear	JOST brand landing gear
King pin	(2') 50# or (3.5') 90#
Ramp	Mechanical or Hydraulic system
Tool box	1 pcs of tool box
Color	According to customers' requirements and RAL color code.

This parameters is only for your reference.
We can customized according to your specific requirement. Qingte is good at customized design.

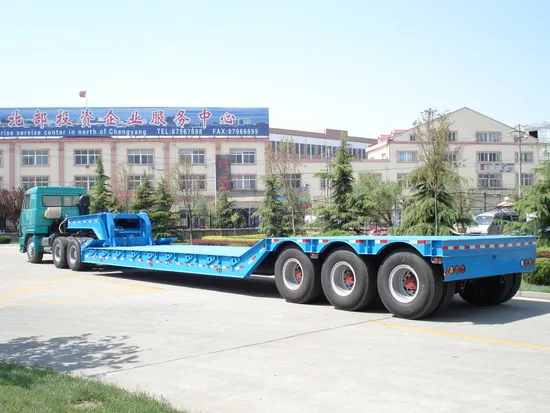

Detailed Photos

Production Capacity
Company Profile
Qingte Group is a diversified enterprise specialize in Special Vehicle, drive axle, trailer axle , and auto parts like gears and casting with the strength of good quality and pretty competitive price. And real estate.
Sincerely hope to establish communication with you for any possible cooperation in the market
Customized special trailers manufacture and Qingte own design trailer export.
Our main trailers including Cargo transport, flatbed, side wall trailer and skeletal semitrailers, Low bed trailer,Tank semitrailers, Modular Trailers (Hydraulic multi axle trailer), SPMT (Self-propelled Modular Transporters),trailer for wind power industry, etc
With rich processing experience and practical expertise, Solid, Durable, and Powerful quality products can be supplied.
We know how to make better bodies for semi-trailers, dumpers, and trucks

---
