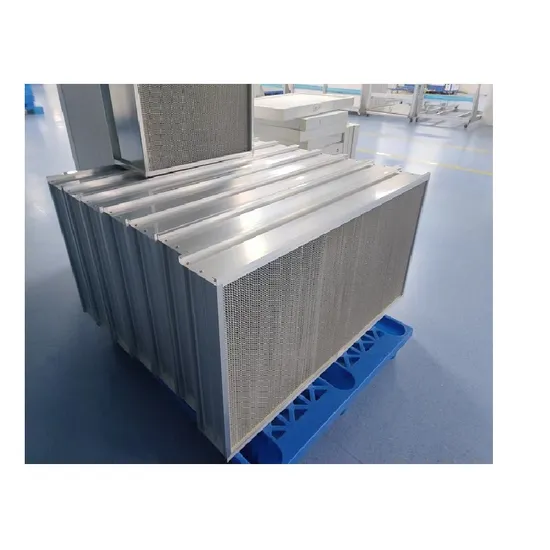

Cleanroom Deep Pleat H13 HEPA Filter, Aluminium Separator H13 HEPA Filter

Product Description

Separator type HEPA filtersOur separator type HEPA filters are mainly used in general industry, semiconductor, electronics, pharmaceutical, food processing, laboratory Settings, healthcare and other fields, as the end of the filtration system, effectively remove small particles in the air to ensure safe production.Available in 50mm, 75mm, 100mm,150mm,292mm depths.The dimensions can be customized according to the requirements.With gasket, or with gel sealing can be choosed.Microfine glass media with hot-melt adhesive separator allow high filteration area with lower pressure drop.95% at 0.3µm to 99.99995%at 0.12µm at most penetrating particle size (MPPS). Features-Multiple frame materials to choose from: aluminum, galvanized iron, stainless steel to meet the needs of different industries, environments, and costs.
-Multiple frame thicknesses to choose from: 50mm, 75mm, 100mm, 150mm, 292mm, to meet different customer needs.
-High filtration efficiency and reliable product quality: According to strict EN1822 standards, H13 achieved a significant level of 99.95% in the most penetrating particle size (MPPS), while H14 achieved an impressive 99.995%
-No leakage detection: Each product undergoes smoke leakage detection before leaving the factory,Common dimensions

Nominal size W×H×D ( in.)	Actual size W×H×D ( mm)	Filter Rating (EN779:2012)	Air flow (m³/h)	InitialP.D. (Pa)	Recommended Final P.D.(Pa)
12×24×12	305×610×292	H11	1700	250	≤500
12×24×6	610×610×150		1630
24×24×12	610×610×292		3400
12×24×12	305×610×292	H13	1700	350
12×24×6	610×610×150		1630
24×24×12	610×610×292		3400
12×24×12	305×610×292	H14	1700	350
12×24×6	610×610×150		1630
24×24×12	610×610×292		3400
★ 50mm,75mm,100mm thickness are also available. Other sizes and air flow are available on request.

Different structures
(Single header type) Double header type Box type
DVANCED TESTING MACHINE
We have advanced HEPA filter testing machine to test the efficiency rate,pressure drop and non leakaging. We garrantee the products we shipped out were all good quality product.
Company introductionSNYLI Environmental Technology (Shandong) Co., Ltd. (Abbr.: SNYLI) is a professional service provider of air purification products integrating R&D, design, production and sales for more than 10 years, with the registered brand of "SNYLI". We are a Company with ISO 9001:2015 and CE Certificates, our primary and medium filters are tested according to ISO 16890 and EN 779:2002. Each HEPA filter and ULPA filter will be scanned to detect possible leaks and filter performance, such as initial pressure drop and filter efficiency.
Since established in 2010, SNYLI always takes deeply contributing innovation and development of the air purification industry as its original intention and mission. With a decade of technology accumulation, SNYLI is growing up to a company with advanced manufacturing equipment, production technology, testing technology.

---
