Cost Price Durable Laminated PVC Ceiling Panel Machine

Product Description

High Speed PVC Ceiling Panel Machine / PVC Wall Panel Making Machine Line
PVC ceiling machine is used to produce UPVC wall panel, PVC ceiling width 200mm,250mm,300mm with different section shape and height. the surface of PVC ceiling panel can be treated by double color printing & coated with glossy oil, or by heat transfer printing, or by lamination, which can make marble, wooden design on surface of product.
Features of our PVC ceiling machine
1. The calcium powder required in the board formula can be increased up to 50%-250% and the required amount of the auxiliary material decreased by 30%.
2. The products made using the PVC ceiling extrusion machine offer a fine appearance and uniform plasticization.
3. Laser tracking eliminates problems regarding the extrusion flow rate, which helps achieve automation of the entire extrusion process.
4. Through the use of a PID controller, the PVC ceiling extrusion machine provides an automatic alarm in case of a problem with any component. Technical parameter of pvc ceiling nigeria/machine to making pvc ceiling
Machine List as below

Item	Quantity
1.SJSZ- XX Twin Screw Extruder with Automatic Feeding System	One set
2.Die Mold & Stock Mold	One set
3.Vacuum Calibrarion Table	One set
4.Haul-off and Cutter Unit	One set
5.Stacker	One set
6.Electric Control System	One set

Product Description
1.Twin screw extruder with Automatic feeding system -- SJSZ series conical twin screw extruder: (The model according to the sizes of final products to choose ) The specially designed screw and the advanced controlling system ensure excellent plasticization, high output and stable extruding.
2.Vacuum calibration table
Heating exchanging and cooling system of quick speed in calibrating system alternate effectively and ordinally with vacuum system, which ensures calibrating precision. Vacuum system composes two independent subsystems and each is equipped with several fixed circulating vacuum lines of three-point type. Meanwhile, each line carries vacuum regulating system and vacuum display system that realize even and stable vacuum degree of plate surface.

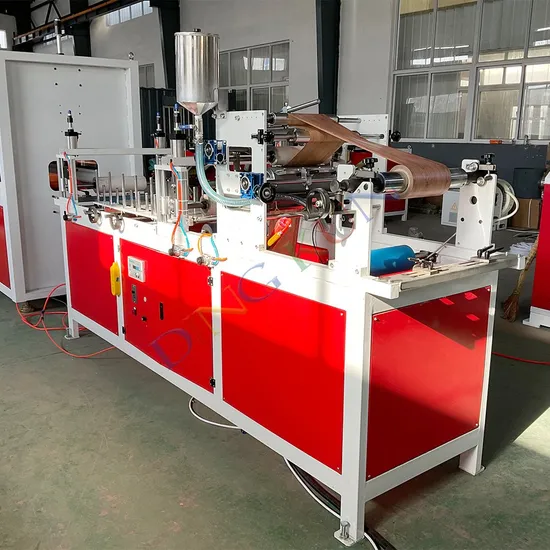

3. HOT Stamping Machine & Lamination Machine
3.Haul-off unit and cutting unit

Max traction speed	1-5m / min
Tractor motor seed control	Frequency Control
Tractor motor power	3kw
Cutter motor power	1.5kw

4.Stacker
The stainless steel kneading board processing becomes, the air operator turn over, using with the cutter, automatically pushes the material, decides long cuts.
PVC Ceiling Panels
DELIVERY
CERTIFICATION
After-Sales Service
1.Our company will provide relevant information on various technology and business consulted by customers. If clients want to visit our company, we will offer all they need for convenience.
2.After signing contract, company designs groundsill installation chart for water, electricity and gas of equipment basing on real condition and customers' requirements and provides detail order list and matching manufacturer for reference for customer.
3.After equipment arrival, our service personnel will arrive at posted locale for installation, debugging, training and technology transfer till customers can operate independently and manufactures eligible product. Service personnel have to arrive at customer's locale in time when we provide service for client again.
