Solid Liquid Separator for Animal Waste Dewatering Cow Dung Manure Dehydrator Cleaning Machine

Product Description

Manure Treating Equipment/Solid Liquid Separator/Manure Scraper

Product Description
Introduction of Manure Treating Equipment

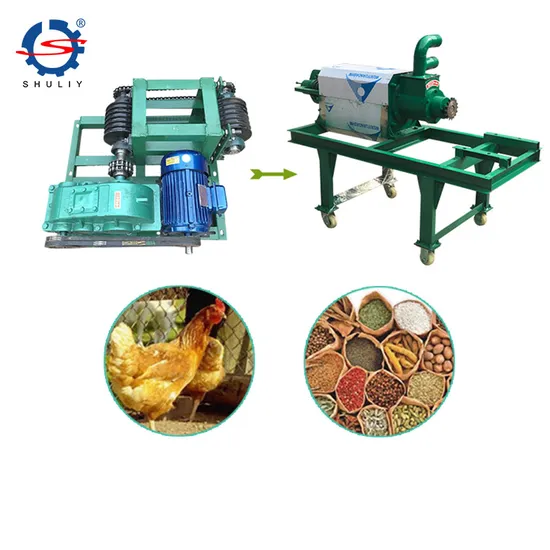

Manure Treating Equipment includes a Manure Scraper and a Solid Liquid Separator. We can provide the processing line and also every machine.
Application of Manure Treating Equipment
1.This Manure Treating Equipment can deal with animal waste, like pig manure, duck dung, chicken manure, cow dung, etc.
2.It is also can deal with daily waste, and industrial waste such as cacao residue, tealeaf dregs, bagasse, sludge, herb dregs, starch residue, etc.
3.Widely used in farms, wineries, food factories, sewage plants, etc. 4.Because of the different raw materials processed, we can design a reasonable use plan according to the customer's requirements.
Working Flow of Manure Treating Equipment
Manure Scraper
1.It is mainly composed of motor,reduction gears,scraper, angle pulley and nylon rope etc.
2.Speed reducer output shaft transfers the dynamic force to the main driving wheel through chain or triangle belt.Driving wheel and hauling cable drives scratch board back and forth movement.
Screw Press Solid Liquid Separator
1.It consists of a screw pump, motor, return pipe, dandruff comb, etc.
2.The dry and wet separator pumps the manure to the main machine by the screw pump. The moisture in the material is extruded out of the screen and flows out of the water pipe, while the manure is extruded to the discharge hole. The moisture content of the separated slag is 30%.

Product Parameters
Parameter of Screw Press Solid Liquid Separator

Model	SL150	SL200	SL280	SL350
Capacity(m3/h)	8-10	15-20	25-30	35-40
Main Power(kW)	4	5.5	7.5	11
Pump Power(kW)	3	4	5.5	5.5
Screen Inner Dimension(mm)	150*460	200*460	280*460	350*800
Main Motor Speed(r/min)	43	43	43	43
Pump Speed(r/min)	1450	1450	1450	1450
Weight(kg)	350	480	700	1200
Dimension(mm)	2000*500*1600	2100*600*1600	2200*700*1650	2800*1600*1700
Voltage	380v 50hz(can be changed as customers' request)
Material	Outer shell is iron steel, inner contact parts are stainless steel 304

Related machine
Our company show:
Zhengzhou Shuliy Machinery Co., Ltd. was found in 2000. Our company specializes mainly produce animal manure dehydrate machines and so on. We not only provide customers with cost-effective products but also provide first-class service support and solutions. Our products have been exported to countries and regions such as Arabia, India, Russia, Central Asia, Africa, and Mongolia. Perfect after-sales service system allows you to worry-free.
FAQ: Q1: Are you a manufacturer or trade company?
A1:We is a professional manufacturer for producing machinery for over 10 years.

Q2: How is the quality of your product?
A2: Our products are manufactured according to national and international standards, and we have a test on every machine before delivery.

Q3: How about the price?
A3: We are a professional manufacturer and be able to provide you with the lowest price than the market one. We will give you the best quotation.

Q4:What if the machine is damaged?
A5:One year warranty and all-round after-sales service. After this deadline, we shall charge at a low cost to keep after-sales service.

---
