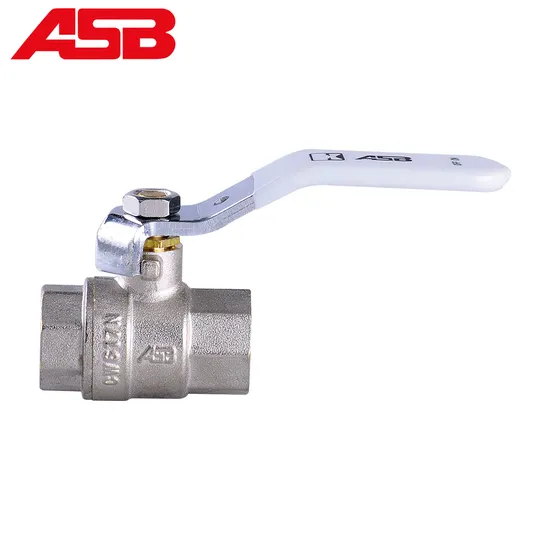

Cw617n Brass Made Brass Ball Valves for Heating

Product Description

PRODUCT DESCRIPTION
ASB ball valves compact structure, reliable sealing, simple structure, easy maintenance, sealing surface and spherical surface often in a closed state, not easily eroded by the medium, easy operation and maintenance, suitable for water, solvents, acids and natural gas and other general working medium, but also suitable for working conditions of harsh media, such as oxygen, hydrogen peroxide, methane and ethylene, etc., in various industries has been widely used.
PRODUCT DETAILS

Product Name	ASB gas ball valve
Material	Brass(body)
Pressure	0-40bar
Temperature	-20 -100ºC
Size	1/2"-2"
Origin	Zhejiang
Application:	Water-Gas-Heating
HS Code	8481804090

PRODUCT STRUCTURE 1. Steel Hand
2. NBR O-RING 3. Brass Stem 4. Brass Ball 5. PTFE washer 6. Nut 7. Brass Body
PROCESS FLOW
WHY CHOOSE ASB Brass Ball Valves?
1. The body is made of CW617N brass, the CU% is more than 58% and the PB% is less 2%, it is healthy for people in potable systems. 2. The stem and core are also made of brass but not steel, it makes sure the item is in top quality level. 3. The seal washer is made of the king of plastic-PTFE, it prevent from leaking very well. 4. The working pressure is just 5bar, easy to operate. And it can hold on over 40bars' pressure. 5. It can be worked in -10-110ºC

---
