11kv Aluminum ABC Service Drop Overhead Electrical Cable PVC XLPE Insulated Duple/Triplex/Quadruplex Electrical Cable ABC Cable Factory Price

Product Description

Product Description

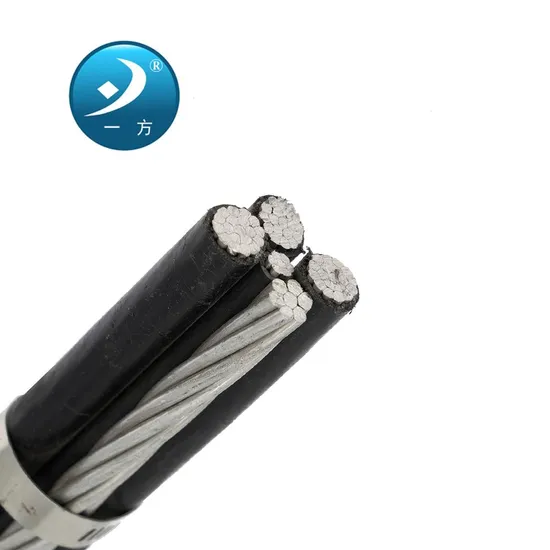

XLPE or PE Insulated Aerial Bundled Cables
Aerial Bunched Cable:
1. Concentric strand AAC, ACSR or AAAC alloy neutral messenger
2. PE or XLPE insulation
3. Overhead cable
Aerial Bunched Cable is used for aerial three phase power supply from the utility's lines to the consumer's servicehead
B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
B-231 Aluminum Conductors, Concentric-Lay-Stranded(AAC)
B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced(ACSR)
B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors(AAAC)
B-498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced
Quadruplex Service Drop cable meet the requirements of ANSI/ICEA S-76-474
As per Yemen PEC standard
Standard: IEC, BS, and NFC
Rated voltage: 0.6/1kV
Specification: Concentric strand aluminum wires as phase conductor, AAAC (all aluminum alloy conductors) or ACSR (aluminum conductor steel reinforced) as messenger (neutral) core, or no special messenger core, phase conductor is insulated by XLPE, HDPE
Application: The cable as a new type aerial cable is used for transmitting electric power overhead, extensively used in rebuilding of urban and forest region electrified wire netting
It improves the safety and reliance of electrified wire netting
We can also manufactured ABC cable according to customer's special requirements

Item	Description	Phase conductor		Approx. Overall Diameter & Weight
		NO.Stranding & Diameter	XLPE Thickness	Diameter (mm)	Weight (kg/km)
1	1x10mm 2	7/1.35	1	6.15	44
2	1x16mm 2	7/1.70	1.2	7.62	68
3	1x25mm 2	7/2.22	1.2	8.72	96
4	1x35mm 2	7/2.59	1.4	10.14	134
5	1x50mm 2	7/3.10	1.4	11.24	180
6	1x70mm 2	19/2.22	1.4	12.94	242
7	1x95mm 2	19/2.59	1.4	14.54	318
8	1x120mm 2	19/2.97	1.6	16.36	403
9	1x150mm 2	37/2.33	1.8	18.38	504
10	1x185mm 2	37/2.59	2	20.4	622
11	1x240mm 2	37/2.97	2.2	23.22	802
12	1x300mm 2	37/3.36	2.4	25.64	996

Production Equipment and Workshop
Customer Feedback
Our company
Yifang Electric group mainly specialized in wire&cables,including designment,production and sale.
Products are mainly covering low,medium,high voltage(1KV to 220KV) XLPE Insulated power cable,PVC insulated power cable,ABC cable,building cable control cable,rubber cable welding cable Etc.
Our XLPE cable can be manufactured according to the company's specification which is equivalent to IEC 60502,IEC60332,IEC60754. Some indexes are superior to above international standard.
Our certificate
FAQ
1.Q:Are you a factory or trading company?
A: Manufacturing base in Henan ,China, with more than 500 workers.
2.Q:How can I visit there?
A: Sure,If you need,we will arrange the driver to pick you up.
3.Q:How can I get some samples?
A: Contact me on below,Determin sample and address for shipping.
4.Q:Have you ever supplied cables to our country?
A: Yifang Cables have been sold to over 100 countries and regions in the world. can you contact me for details.
5.Q:What is your MOQ?
A: MOQ Normally 500 meters for big diameter cables.Please contact me for detail info if you have specific cable requirement.
6. Q:When can I get the price?
A: Usually quote within 6 hours after we get your inquiry.
7.Q:How long is your delivery time?
A: According to your order's quantity.Usually our lead time is 3 - 20 working days.

---
