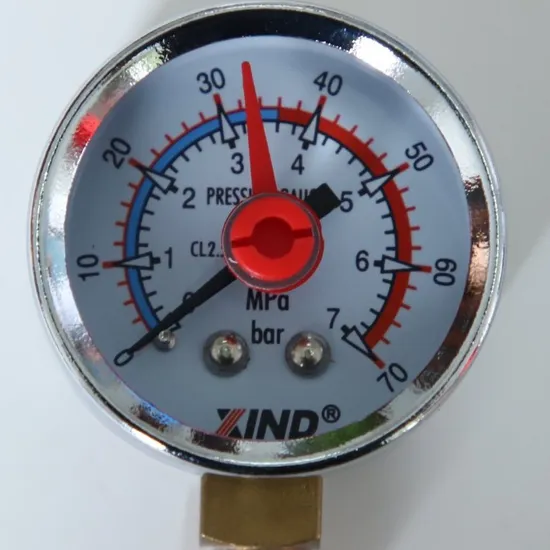

Y40 Bottom Galvanized Red Pointer Pressure Gauge

Product Description

Bourdon Tube Pressure Gauge Application *Suitable for fluid medium which does not clog connection port for corrode copper alloy; *Engineering machinery, Testing equipment; *Hydraulic and pneumatic system; *Medical engineering;Product feature *Conforms to the standard of the People's Republic Of China General Pressure Gauge ,GB/T1226-2017 and the standard of EN837-1; *Size(mm): 40,50,60,70,80,90,100,125,150,200; *Permissible temperature: Ambient:-20......+60ºC,Media:+60ºC(maximum); *Accuracy class: ±1.0%F.S ±1.6%F.S ±2.5%F.S; *Range: 0~60MPa; *Protection grade: IP54; Specifications *Meterial: ABS plastic, Steel with electroplate,cataphoretic,painted etc; *Connection: NPT PT BSP(1/8" 1/4" 3/8" 1/2") M14×1.5 M20×1.5; *Installation form: U-clam bracket, Lower mount(LM), Center back mount(CBM), Lower back mount(LBM), Back panel mount(BPM);

---
