50kn Computer Controlled Electromechanical Fabric Textile Tensile Strength Tester

Product Description

Product Description

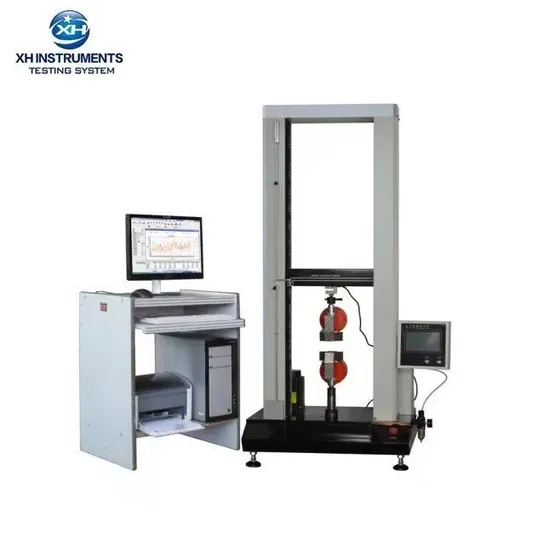

XHL-02T/HT Textile Tensile Strength Tester is a new generation of tester with innovative design, convenient using, excellent performance and pleasing appearance, this tester is special deigned in testing textile and Yarn.

Test Function:
Constant Speed Tensile Test
Peeling Test
Tearing Test
Seam Slippage Test
Bursting Test
Definite Elongation Test Load Test
Definite Load Test Elongation Test
Elastic Recovery Test
Yarn Strength Test
Lea Yarn Strength Test
Testing Standards:
ISO13934.1, ISO13934.2, ISO13937.2, ISO9073.4, ISO13936.1, ISO13936.2, ISO13935.1, ISO13935.2, ISO 2062, ASTM D2256 ASTM D5034, ASTM D5035, ASTM D2261, ASTM D5587, ASTM D3936, ASTM D4964, ISO 9073.3, ISO 9073.5, ASTM D2061.................ETC.
Features:
I. Working pattern: CRE principle, controlled by large LCD, equipped with an online interface, can be also controlled by computer with professional textile and yarn testing software., real time display graphs, breaking load, elongation, with PC powerful analysis system, also can give yield load, yield elongation, CV% of load...etc.

II. Adopt Imported sensor from American Tedea, AC servo drive, ball screw, to do a wide range speed setting, suitable for all kinds of material mechanical performance testing.

III. Dual control, LCD panel control and computer control.

IV. According to the customer need to provide a variety of standard test functions, can also be customized according to customer requirements, results can be output to be word, picture, excel format, With different clamps can perform different test perfectly.

V. All testing results and graphs can be statistics and output into Excel, Word, and be printed accordingly.

VI. With the protective function of overload, over current, over voltage, displacement upper and lower limitation, also with emergency stop.

VII. Multi Unit is selectable: CN, N, Lb, g, Kg, mm, Inch
Technical Parameter:

Load Cell	100N, 200N, 500N, 1000N, 2000N, 3000N, 5000N, 10000N
Resolution of load	0.1N
Load measurement accuracy	+/-0.5% of the indicated load value
Jog speed	0.1mm/min-1000mm/min (adjustable)
Return speed	0.1mm/min-1000mm/min (adjustable)
Speed accuracy	<+/-1%
Elongation	When gauge length is 100mm, max elongation is 700mm
Gauge Length	25-500mm (adjustable)
Displacement resolution and acccuracy	0.01mm
Pretension force	Adjustable
Machine dimension	380×480×1450mm
Machine weight	120kgs

Recommendend Products

Company Profile

Packaging & Shipping
FAQ
1. How About Machines Calibration?
Answer: All machines is calibrated well in house before it is out of factory, XH Instruments will provide you calibration report, if you need calibration certificate from third party, such as ISO 17025 certificate, we also can provide you with extra charge.
2. What about delivery way and delivery item?
Answer: Courier Express Delivery, Sea Delivery, Air Delivery.
EXW Works, FOB, C&F, CIF, ClP, CPT, FCA, DDU.
3. How can I pay you?
Answer:Bank TT, Western Union, L/C, Paypal.
4. How about you after service?
Answer: XH Instruments will give a feedback within 24 hours.Warranty Period is 12 Months.
For problem caused by product quality within warranty period,XH Instruments will provide product maintenance, technical support, freight out and home as well as spare parts free of charge.
Problem not caused by product quality within warranty period or maintenance beyond warranty period is only charged for replaced parts. However, freight charges home and out are at customer' side (only the replaced part is charged if transportation of instrument is unnecessary).

---
