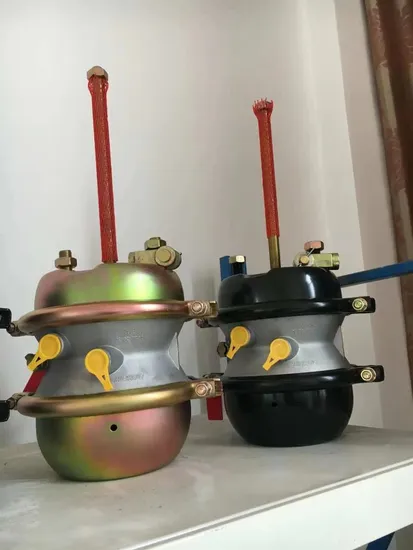

Double Air Spring Brake Chamber T30/30dd Brake Chamber of Truck

US$15.00-25.00 20 Pieces (MOQ)

Basic Info.

Model NO.
T3030DD
Type
Brake System
Material
Steel
Position
Rear
Certification
ISO/TS16949, ISO13485, ISO14001, BSCI, IATF-16949, ISO9001, ISO9002, AMECA, DOT, ECE, FSC, HACCP, GSV, GMP
Classification
Drum
Drum Brakes Classification
Brake Drum
Main Market
South America, North America, Eastern Europe, Mild East, Southeast Asia, Africa, Western Europe, Eastern Asia, Northern Europe, Oceania, Central America, South Asia, Domestic Market
Transport Package
Wooden
Trademark
BL
Origin
China
HS Code
8708709100
Production Capacity
50000

Product Description

The braking chamber is a crucial component in the braking system of a vehicle, responsible for converting the driver's braking input into the necessary force to slow or stop the vehicle. It typically houses the brake master cylinder, which generates the hydraulic pressure that actuates the brakes at each wheel. This chamber is designed to be sturdy and durable, withstanding the high pressures and temperatures generated during braking. The layout and components within the braking chamber are carefully engineered to ensure optimal performance and safety. Regular maintenance and inspection of the braking chamber are essential to ensure the continued reliability and effectiveness of the braking system. Product Parameters
Diaphragms -- General
Part No Type Alternative Alternative Alternative A(mm) B(mm) C(mm)
TYE9.A T9 8971204954 272489 KY1505/1 128 79 31
TYE9.B 9L 8017209 B.74478 --- 128 71 30
TYE12/16 12/16L 8971219234 --- --- 162 79 43
TYE12S 12 SS KY1505/2 8017112 A.75056.3 139 19 28
TYE12 T 12 8971205054 8017212 B.7447.9 139 79 30
TYE14S 14 SS 8971216104 8017114 B.61290 147 7g 32
TYE14 T 14 8971216154 8017214 B.54871 147 79 41
TYE16S 16 SS 8971205104 8017116 A.75056.4 158 100 32
TYE16 T 16 8971205154 8017216 B.56649 158 100 38
TYE16L 16 LS 8971205164 8017316 1188264 158 100 47
TYE20S 20 SS 8971205204 8017120 A.75056.5 168 106 32
TYE20 T 20 8971205254 8017220 B.58894 168 106 38
TYE20L T 20 L 8971205264 8017320 1186260 168 106 47
TYE24 T 24 8971205354 8017241 B.64322 179 115 39
TYE24L T 24 L 8971205364 8017424 1186261 179 115 47
TYE27 T 27 8971205474 8017227 1190023 200 120 34
TYE30 T 30 8971205404 8017130 A.75056.7 200 139 33
TYE30L T 30 L 8971205464 8017430 B.59171 200 139 48
TYE36 T 36 L 8971205504 8017136 1185301 224 165 46
Clamp Ring Sets c/w Nuts & Bolts
Part No Type Image
TYCS16 16
TYCS20 20
TYCS24 24
TYCS30 30
Rubber Gaiters
Part No Application Image
TYL03.1 Disc
Brake
TYL03.2 Cam
Brake
TYL03.3 Disc Parking
Actuators
Push Rods--Cam Brake(16mm Thread)
Part No Type Image
TYI.A12 12
TYI.A16 16
TYI.A20 20
TYI.A24 24
TYI.A30 30
Push Rods--Disc Brake
Part No Type Image
TYI.B10 10
TYI.B12 12
TYI.B14 14
TYI.B16 16
TYI.B18 18
TYI.B20 20
TYI.B24 24
TYI.B30 30
Brake Chamber Return Spring
Part No Type Image
TYS01 Universal
TYS01-5.1 Tower spring
TYS02-4 Drum spring
Yoke Assemblies
Part No Information Image
TYF.04 Long Version
16mm Thread
14mm Pin
TYF.06 16mm Thread
16mm Pin
TYF.02.B14 5/8'Thread
14mm Pin
TYF.01.A1/2 Short Version
16mm Thread
1/2' Pin
TYF.01.A14 Short Version
16mm Thread
14mm Pin
TYF.02.A14 ROR Disc Brake Version
16mm Thread
14mm Pin
TYF.05.A14 Deep Throat Version
16mm Thread
14mm Pin
Alt:003033609
TYF.02.C1/2 5/8' UNF Thread 1/2' Pin
Alt:228790
YUF.03 ROLLER FORKS
Adaptors
Part No Information Image
TYD.03.A Male-M16*1.5
Female-M22*1.5
VOSS
TYD.03.E Male-M22*1.5(Std)
Female-M22*1.5 VOSS
TYD.03.B Male-M22*1.5
Female-M16*1.5
TYD.03.F Male-M16*1.5
Female-1/4 BSP
TYD.03.G Male-1/4 BSP
Female-M16*1.5
TYD.03.H Male-3/8 BSP
Female-M16*1.5
TYD.03.I Male-M16*1.5
Female-3/8 BSP
