Product Description
Product Description

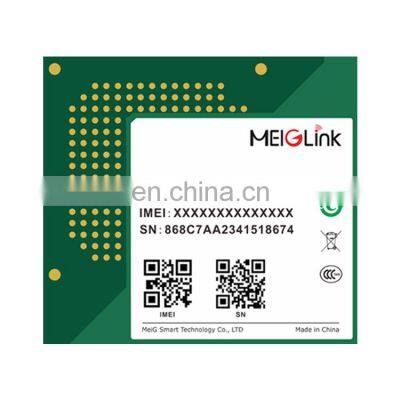

DescriptionProduct Description● MeiG Smart SLM868 is an LTE-A Cat6/Cat16 high-rate module designed for M2M and Internet of Things applications.With 3GPP Rel.11 technology, the maximum downlink rate is 1Gbps (Cat16) and the maximum uplink rate is 50Mbps.● The SLM868 series has four models designed for different target areas, including SLM868-C (China), SLM868-E (Europe), SLM868-A (North America) and SLM868-SA (South America), covering the global mainstream operator networks.● SLM868 adopts multiple antennas at the receiving end through MIMO technology, thus reducing bit error rate, improving communication quality and optimizing data transmission speed.SLM868 has built-in multi-constellation high-precision GNSS receiver, which supports GPS/GLONASS/BEIDOU/GALILEO/QZSS and provides fast and accurate positioning service.● SLM868 supports rich industry standard interfaces, facilitates peripheral expansion, supports SDIO, PCIe, SPI, multiple UART, ADC, GPIO and other interfaces, and is compatible with various types of operating systems (Android, Linux, Windows XP/7/8/10 and other operating systems), making it widely applicable to various M2M and IoT industrial routing, CPE, OTT, PDA, video monitoring andother fields.Main advantages● Adopt LTE-A Cat16, with a maximum downlink rate of 1Gbps and a maximum uplink rate of 50Mbps.● Support carrier aggregation● Coverage of LTE-FDD/LTE-TDD/WCDMA/EDGE/GPRS networks● Qualcomm® IZat ™ 8C engine, support GPS/GLONASS/Beidou/Galileo/QZSS● Support various speech codes (HR/FR/EFR/AMR/AMR-WB) and SRLTE/CSFB/VOLTE● Support radio frequency MIMO(Max 4*4), improve communication quality and optimize data transmission speedBasic Attributes：Product model:SLM868 ModulePackaging：LGA packaging（311pin）Size(mm)：40.0×40.0×3.0mmWeight:< 15gVoltage：3.3V～4.2V，Typ. 3.6VStandby Consumption：50μAModule Rate：LTE (Cat 16)：Max 1Gbps(DL)/50Mbps(UL)LTE (Cat 12)：Max 600Mbps(DL)/50Mbps(UL)LTE (Cat 6)：Max 300Mbps(DL)/50Mbps(UL)DC-HSPA+：Max 42Mbps(DL)/5.76Mbps(UL)WCDMA：Max 384kbps(DL)/384kbps(UL)EDGE：Max 296Kbps kbps(DL)/236.8kbps(UL)GPRS：Max 107 kbps(DL)/85.6kbps(UL)Drivers & Tools:Drivers:Windows XP, Windows Vista,Windows 7, Windows 8, Windows 8.1,Windows 10, Linux, AndroidTools：One-click upgrade tool;Gobinet dial tool*FOTA UpdateModule Interface:USB 2.0/USB 3.0UART×3SIM Card Interface(1.8 / 3.0V)Antenna Interface：main/diversity/GNSSI2C×1SDIO×1Power On/Off,ResetADC×2SPI×1PCM×1PCIe×1GPIOsCertification Information:CCC*/CE*/FCC*/ROHSTransmit Power:GSM850/900 33±2dBm，GSM1800/1900 30±2dBm，WCDMA/HSPA 23+1/-3dBm，LTE 23±2.7dBmProtocols：TCP*/UDP*/SSL*/HTTP(S)*/FTP*/PPP/PING/DTMF*/QMIEnvironmental Temperature：Working Temperature:-40℃ to 85℃Storage Temperature：-45℃ to 90℃Humidity：5%~95%Band Description of SLM868 :SLM868-ABand：LTE-FDD:B2/B4/B5/B12/B13/B17/B26/B66LTE-TDD:B41WCDMA:B2/B4/B5 GSM:850/1900CA ：Max 2CA(Cat 6)Max 4CA(Cat16)GNSS：supportPCM：supportSLM868-SABand：LTE-FDD: B2/B4/B5/B7/B28LTE-TDD: B38/B41WCDMA: B2/B4/B5 GSM: 850/1900CA ：Max 2CA(Cat 6)Max 4CA(Cat16)GNSS：supportPCM：supportSLM868-EBand：LTE-FDD: B1/B3/B7/B8/B20LTE-TDD: B40WCDMA: B1/B3/B8GSM: 900/1800CA ：Max 2CA(Cat 6)Max 4CA(Cat16)GNSS：supportPCM：supportSLM868-CBand：LTE-FDD: B1/B3/B5/B8/(B28)LTE-TDD: B38/B39/B40/B41WCDMA: B1/B8TD-SCDMA: B34/B39CDMA&EVDO: BC0 GSM: 900/1800CA ：Max 2CA(Cat 6)Max 4CA(Cat16)GNSS：supportPCM：supportWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
>>
