Rolling Machine Professional Manufacturer with Negotiable Price

Product Description

Rolling Machine Professional Manufacturer with Negotiable Price
Product Introduction:

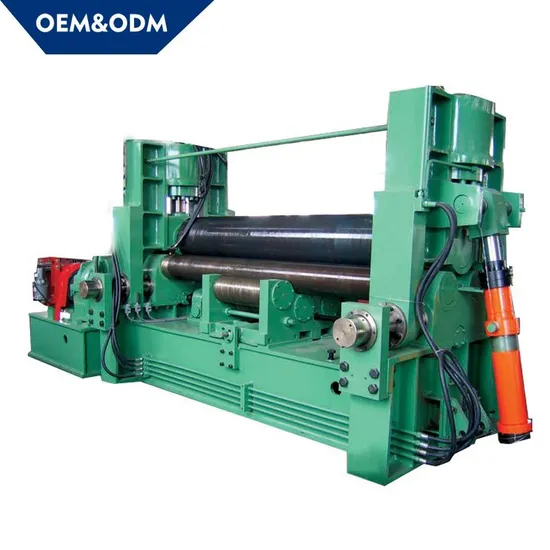

1.The 3 rollers rolling machine is of totally European design, streamlined looking.
Frames of the 3-roller rolling machine are fabricated, Roll shafts,
materials and bearings used in production are of European quality.
Besides, the torque limit of the machines is very high.
NC playback and CNC graphic control systems are available as optional accessory.
2.The main structure of the hydraulic plate rolling machine includes upper roller, lower roller and
horizontal movement mechanism, supporting mechanism, main drive mechanism, downturn system,
left and right machine frame, chassis and balance mechanism, hydraulic and electrical control systems.
The hydraulic rolling machine allows for excellent roundness,
thanks to the planetary movement of the side rolls ,
moving them to the center of the machine (the tightest geometry available),
compared to the inclined linear guides of other brands that, especially on large diameters,
move farther away from the central roll and the plate clamping.
Clamping pressure is adjustable,
(no-existent skidding, productivity is 80% than three roller plate rolling machine).
3.The features of three rollers hydraulic plate rolling machine :
It is of high precision pre-bending, freely setup the width of plate.
Upper roller presses the plate end for pre-bending.
Upper roller of the3 roller rolling machine likes drum with collaboration of
carrier roller permit continual bending of any thickness of plate.
The 3 roller rolling machine can work safely with fixed two down roller and one upper roller
doing the horizontal and vertical movement, and the plate doesn't move during upper roller moving.
4.PLC control system:
The hydraulic plate rolling machine is controlled in entry-level by a user-friendly CNC, to roll parts in automatic mode.
The hydraulic plate rolling machine is equipped with HMI (human machine interface),
so it is access to intelligent operation.
single operate, high efficiency, safe and convenient.
There are many models of this hydraulic plate rolling machine for choice,
including economic numerical control model and so on.
5.Main configurations of hydraulic plate rolling machine as following:
Main electronic elements: Siemens;
Main motor: Siemens Electrical made in Germany;
Programmable logic controller PLC: OMRON products from Japan;
Hydraulic system: Omega made in USA;
Gear pump: made in China Taiwan;
Work Roller: Material of work roller with 42CrMo Alloy steel;
Digital display system: Touch Screen for Delta;
Transducer: OMRON, made in Japan;
Automatic lubrication system: Sino-Japanese joint, which has block alarm.
Main Technical Parameters :

Model	Pressure	Max.rolling thickness		Max.rolling	Upper roller	Down roller	Rollers	Motor
	(Ton)	(mm)		length	diameter	diameter	distance	kw
		Pre-bending	Max bending	mm	mm	mm	mm	Driving	Hydraulic	Moving
		mm	mm
6x1500	25	4.8	6	1500	175	125	160	3	2.2	0.75
6x2000	25	4.8	6	2000	195	125	160	3	2.2	0.75
6x2500	25	4.8	6	2500	205	135	180	3	2.2	0.75
6x3000	37	4.8	6	3000	215	135	180	4	2.2	0.75
8x1500	25	6.4	8	1500	175	125	160	3	2.2	0.75
8x2000	25	6.4	8	2000	195	125	160	3	2.2	0.75
8x2500	37	6.4	8	2500	205	135	180	4	2.2	0.75
8x3000	45	6.4	8	3000	215	135	180	4	2.2	0.75
10x1500	37	8	10	1500	205	135	180	4	2.2	0.75
10x2000	45	8	10	2000	215	135	180	4	2.2	0.75
10x2500	45	8	10	2500	235	135	180	4	2.2	0.75
10x3000	65	8	10	3000	245	135	180	5.5	4	0.75
10x4000	75	8	10	4000	255	150	245	7.5	4	1.1
12x2000	65	9.6	12	2000	250	145	200	5.5	4	0.75
12x2500	65	9.6	12	2500	255	150	245	5.5	4	0.75
12x3000	75	9.6	12	3000	270	150	245	7.5	4	1.1
12x6000	100	9.6	12	6000	290	150	245	15	5.5	1.5
16x2000	75	12.8	16	2000	255	150	245	7.5	4	1.1
16x2500	100	12.8	16	2500	270	150	245	15	5.5	1.5
16x3200	100	12.8	16	3200	290	150	245	15	5.5	1.5
16x6000	190	12.8	16	6000	300	165	270	22	7.5	4
20x2000	100	16	20	2000	325	165	270	15	5.5	1.5
20x2500	130	16	20	2500	330	180	300	15	5.5	1.5
20x3000	160	16	20	3000	350	180	300	18.5	7.5	2.2
20x4000	190	16	20	4000	360	200	330	22	7.5	4
20x6000	380	16	20	6000	375	200	330	45	22	5.5
25x2000	160	20	25	2000	330	180	300	18.5	7.5	2.2
25x2500	190	20	25	2500	350	180	300	22	7.5	4

---
