US$4,500.00-8,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Applicable Industries
Farms, Construction Works, Energy & Mining
Min. Lifting Height
200mm
Overall Dimensions
3790X1238X2130mm
Min.Turning Radius
2445mm
Video Outgoing-Inspection
Provided
Transmission
Mechanical, Auto Transmission
Core Components
Pressure Vessel, Motor, Bearing, Gear, Pump
Engine Brand
Chinese or Japan Brand
Forklift Attachment
Paper Roll Clamps Pole Attachments
Color
Orange Yellow Red Blue, Optional
Transport Package
Export Standard Package
Specification
162n/M/1950rpm
Production Capacity
200 Piece/Pieces Per Week
Product Description
Product Description

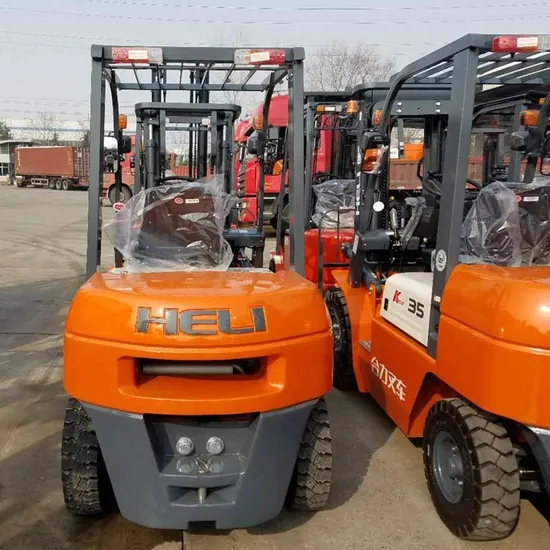

Heli CPCD30 3 Ton Forklift Truck with Diesel Engine
√ A perfect combination of power and capacity.
√ Consistent, robust, and reliablein the most challenging conditions.
√ Able to carry loads ranging from 1.6 to 5 tons, while ensuring rapid turnaround and theutmost efficiency in your warehouse or production facility.
√ Offer both powerful performance and genuine cost-effectiveness.
√ Extremelymaneuverable and transport goods reliably, both indoors and outdoors.New Compact Mast: Greatly improves the visibility, providing the driver with excellent views of the load and the operating environmentPowerful Engines: helps guarantee excellent driving dynamics with low emissions4-inch Display: Menu is available to be extended, readable error indicationErgonomic Design: Operator and machine working as one. The operator is able to operate all control elements with minimum effort and utmost precision Technical Specifications
| ORKLIFT SPECIFICATIONS |
| No. | Specifications | Unit | CPCD30 |
| 1 | Characteristics | Power | | diesel |
| 2 | Rated Capacity | kg | 3000 |
| 3 | Center of load | mm | 500 |
| 4 | Lifting height | mm | 3000 |
| 5 | Free lifting height | mm | 145 |
| 6 | Forks L×W×H | mm | 1070x125x45 |
| 8 | Min.turning radius | mm | 2400 |
| 9 | Min.ground clearance(Mast) | mm | 110 |
| 10 | Overhead guard height | mm | 2138 |
| 11 | Front overhang | mm | 943 |
| 12 | Perf | Max.traveling speed(loaded) | km/h | 483 |
| | Max.traveling speed(loaded) | km/h | 20 |
| 13 | Max.lifting speed(loaded/empty) | mm/s | 470/520 |
| 14 | Drawbar pull/Gradeability | kN/% | 18/20 |
| 15 | Dimensions | Overall length (without fork) | mm | 2695 |
| 16 | Overall width | mm | 1230 |
| 17 | Mast lowered height | mm | 2055 |
| 18 | Mast extended height | mm | 4256 |
| 19 | Chassis | Tire | Front | | 28x9-15-12PR |
| 20 | Rear | | 6.50-10-10PR |
| 21 | Wheelbase | mm | 1700 |
| 22 | Tread width | Front/Rear | mm | 1000/970 |
| 23 | Curb weight | None-load | kg | 4350 |
If you need more product information, please feel free to contact us!
