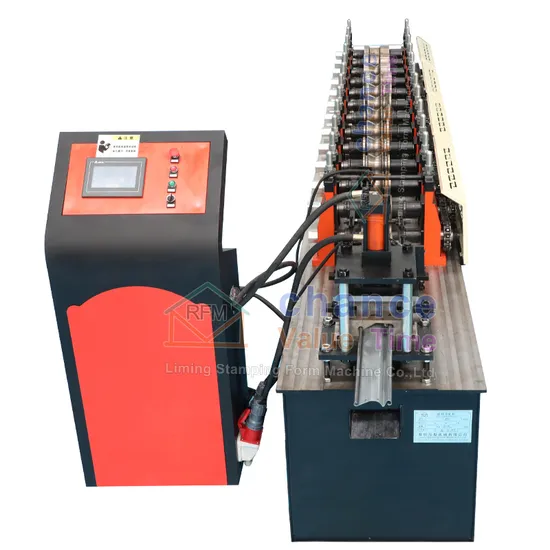

Mechanical Building Materials Galvanized Roller Shutter Door Cold Rolling Forming Machine

Product Description

Liming High Quality Wholesale rolling shutter machine for various door industries
Decoiler-feedingdevice-mainforming-PU injection---straightendevice--FlysawCutting ---run out table Product Parameters

Name	Quantity	Units
1	De-coiler	1 set
2	Guide Feeding device	1 set
3	main forming machine	1 set
4	Foaming machine (just foamed one owned)	1 set
5	Straighten device	1 set
6	flying saw cutting machine	1 set
7	finished products table	1 set
8	PLC control system	1 set
9	Spare Parts And Tools	1 set

Main Specification:
Forming stands: 37 stands
Working speed: 8-15m/min
Roller material GCr15: model steel, HRC50-54
Axial diameter: Φ40mm
Main axial material: No 45 steel HRB260-280
Driving part is gear box transmission
PLC control: fix length control ±1mm (Panasonic)
The precision of roller: less than ±0.5mm
Main roll forming machine motor: 380V, 50HZ, 11KW (or according to your requirements)
Machine basement material: H beam
Cutting method: flying cutting
After Sales Service

FAQ
Q1. How do I choose the right machine for me?
1. A machine doesn't just provide a few photos to prove what they can produce
2. A machine should have a complete production and assembly system photos and videos. When choosing a company with a factory, it is necessary to ensure that the company has a complete after-sales service system.
Q2. You don't show the product I need, can you manufacture it?
Our company's engineers have studied in well-known European cold bending companies and have great advantages in machine design and R&D and manufacturing.
Q3. How long can the machine be built?
Generally speaking, the machine takes about 40 days to complete, if you need a machine urgently, we can make it urgently, because I have a large number of spare parts.
Q4. Why are your prices higher than others?
Because we insist that every factory should put quality first, we make the machines more automated, more reliable and accurate, and have a longer service life.
The equipment can be used for nearly 20 years, and we provide lifetime after-sales service.
Q5. Do you have after-sales support?
Product quality is the ultimate, the biggest after-sales service is service, 26 years of production experience, to be a service company that you have the strength to guarantee
Q6. How to get a quotation?
1. Give me the dimension drawing and thickness, it is very important.
2. If you have requirements for production speed, power, voltage and brand, please explain in advance.
3. If you don't have your own outline drawing, we can recommend some models according to your local market standard.

---
