| US$6.45 | 50 Pieces (MOQ) |

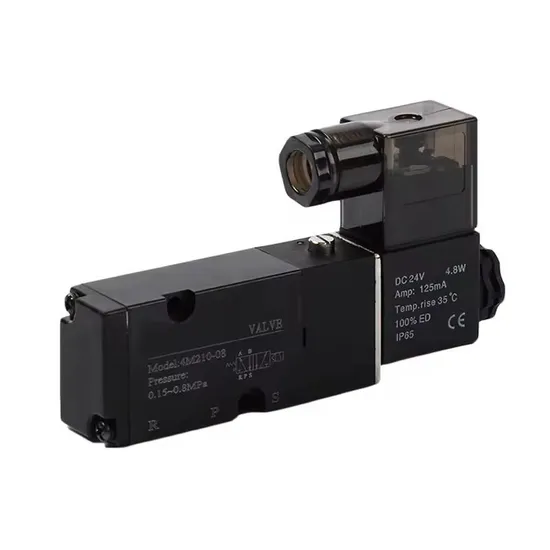

| Model | 4M110-M5 4M120-M5 | 4M110-06 4M120-06 | 4M210-06 4M220-06 | 4M210-08 4M220-08 | 4M310-08 4M320-08 | 4M310-10 4M320-10 | 4M410-10 4M420-10 |
| Working Medium | Clean air (40μm filteration) | ||||||
| Operation | Internal Guide | ||||||
| Port Size | Import=M5 Export=M5 | Import=1/8 Export=1/8 | Import=1/8 Export=1/8 | Import=1/4 Export=1/8 | Import=1/4 Export=1/4 | Import=1/4 Export=3/8 | Import=3/8 Export=3/8 |
| Sectional Area | 5.5mm² (CV=0.31) | 12mm² (CV=0.67) | 14mm² (CV=0.78) | 16mm² (CV=0.89) | 25mm² (CV=1.39) | 30mm² (CV=1.67) | 30mm² (CV=1.67) |
| Working Pressure | 0.15~0.8MPa | ||||||
| Max. Working Prressure | 1.2MPa | ||||||
| Working Temperature | -5~60ºC | ||||||
| Voltage Range | -15%~10% | ||||||
| Heat Resistance Grade | B Grade | ||||||
| Protection Grade | IP65(DIN40050) | ||||||
| Coil Type | Flying Leads/Din Type | ||||||
| Max. Acting Frequency | 4 Time/S | ||||||
