Concrete Road Curb Machine Paver Ditches Paver Concrete Paver

Product Description

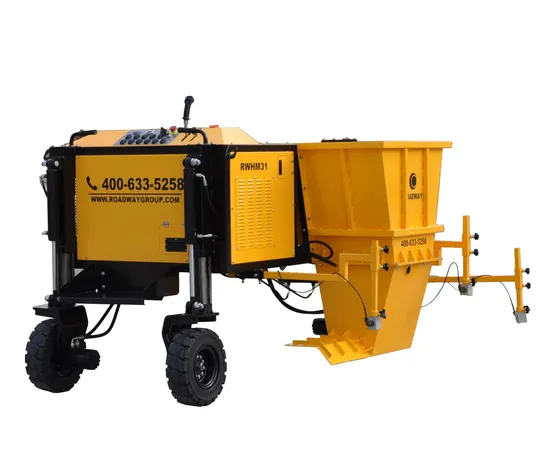

Automatic Curb Paver RWHM31 With HONDA gasoline engine With imported hydraulic variable plunger pump Integrated micro computer control panel, easy operation Forward, Reverse and Steering all controlled by control lever, easy operation With hydraulic rod, high frequency and strong power With high sensitivity tilt sensor, to control direction With imported U.S.A Eaton driving motor With hydraulic high pressure washing pump, can clean machine any time With imported Germany DEUTSCH connectors, waterproof and dustproof

Type	RWHM31
Engine
Model	HONDA GX630
Type	Gasoline Engine, air cooled, two cylinder
Power	20hp/3600rpm
Fuel tank volume	60L
Lubricant L	1.5L
Fuel consumption	313g/kWh
Traveling system
Driving	Hydraulic motor
Wheel	Solid puncture-proof tyre
Speed	0-70m/min
Vibration system
Vibrating rod	Hydraulic vibrating rod
Nominal amplitude	1.5mm
Vibrating frequency	Adjustable
Exciting force	11kN(under 10000rpm)
Control system
Control mode	Auto/Manual
Automatic control	Steering, Transverse slope and Longitudinal slope by high accuracy sensor
Clean system
Power	Hydraulic motor
Theoretical flow	20L/min
Theoretical pressure	7Mpa
Working
Speed	0-15m/min
Mold size	Width 100cm*Height 60cm
Dimension
Overall dimension	2610x1970x1500mm
Weight
Weight	1200kg

---
