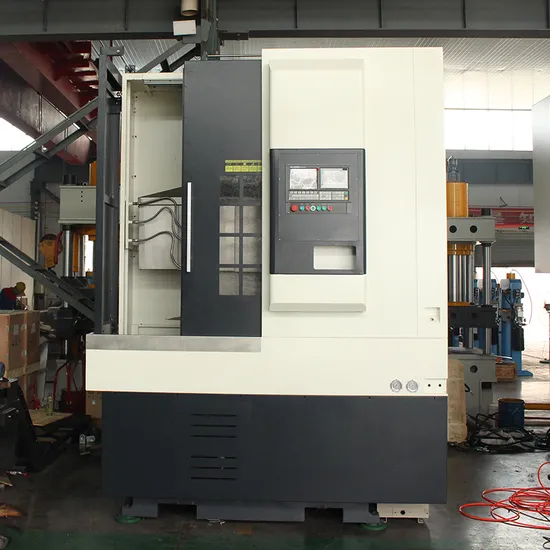

Vtc75 Vertical CNC Lathe Machine with 8-Station Tool Holder

Product Description

VTC75 vertical cnc lathe machine with 8-station tool holder
Product Description
The machine covers a small space, can be designed to meet different space request. The counterweight is used to balance the z-axis with a large load bearing capacity,which effectively ensures the influence of the two axes due to different stress structures. The cutting feed in the process of wheel repair can keep sensitive control response and achieve the perfect wheel milling effect.
1.The machine bed as a whole casting vertical structure. Compared with the horizontal structure, the mechanical transmission is more stable, the turning performance is better and the machining precision is higher.
2.Wheel diameter range is large,machine tool area is small, professional is strong, value for money, operation and use more convenient.
3.Self-developed special wheel repair software. LCD touch screen configuration. Wheel surface measurements and program optimization are done all at once on the machine tool system,So simple, easy to understand and easy to operate.
4.Laser non-contact measurement or probe contact measurement optional, both can also be configured. Laser measurements enable fast scanning.
The tool rest of the machine tool adopts horizontal or vertical multi-station CNC tool rest, which has short tool change time and greatly improves work efficiency. The 8-station tool turret makes the process simpler.
Product Parameters

Specification	Unit	VTC65	VTC75
Maximum rotating diameter of machine tool	mm	650	750
apindle speed range	rpm	100~1000	50~1500
cutting feed speed	mm/min	0.1~1000	0.1~1000
tool test vertical movement length	mm	550	700
tool test horizontal movement length	mm	450	700
rapid traverse speed vertically	mm/min	16000	16000
rapid traverse speed horizontally	mm/min	16000	16000
diameter of hyaraulichuck	mm	500	630
main motor power	kw	18.5	22
positioning accuracy	mm	±0.008	±0.008
repeated positioning accuracy	mm	±0.008	±0.008
Cross weight	kg	7000	9000
machine tool overall dimension	mm	1710x2050x2910	2200x1900x320

Application

This series machine is suitable for machining parts in all industries. Especially for wheel cutting and milling.On the machine cylindrical turning and boring . tapering and surfcing as well as grooving can be carried out rough and finishing.Since the workpiece is mounted on the horizontal worktable, it is more convenient to clamp the workpiece.
Packaging & Shipping


Internal plastic moisture-proof anti-rust packaging,
External wooden packaging,
Exclusive container transport.

Our Services


Our services are divided into pre-sale, sales, after-sale three parts.

Pre-sale:to provide detailed advice, the program recommended to the factory inspection, as far as possible to meet your questions and needs.
Sales:can support samples, support diversified payment methods, the solid forklift tire press machine production process
transparent,standardized and quickly stocking.
After-sales:support diversification guidance, training, voice and video images, and even solid forklift tire press machine overseas site installation, on-site training, home maintenance, continuous return visit customers concerned about the use
Company Profile

Certifications
Zhongyou has passed the ISO quality management system certification,Products are exported to more than 50 countries and regions including Europe, America, Asia, Oceania and Africa.Has a number of product patents and honor certificates,is a continuous innovation machinery and equipment company.
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you .
2: How can I get a quotation?
A: Pls tell us the machine you need, including quantity, raw materials and other requirements.
3: Where is your factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5:How can i trust your company?
A:We have professional design, we can provide you suitable suggestion and lowest price
1. Assessed by third party, national patents and CE, ISO for all equipment, .

---
