HOT SALE! SHACMAN brand 5.8m length refrigerated truck for sale, Factory sale good price 10T-15T cold van box vehicle for sale
SHACMAN brand 4*2 LHD 5.8m length refrigerated truck adopts SHACMAN L3000 One row and a half driver cab, 4500mm wheelbase, WP6.210E32 210hp Euro Ⅱdiesel engine, 8JS85TE-C fastgear 8 speed manual gearbox,4.8T front axle, 200L volume oil tanker, 10.00R20 rail tires, etc.
The overall dimension (L*W*H) of SHACMAN brand diesel 4*2 LHD refrigerated truck is 8050×2500×3800（mm）; while the cold van box dimension(L*W*H) of SHACMAN Brand refrigerated truck is 5800×2400×2630（mm）. The cubage of the cold van box body is 36.6cbm, large volume.
Exterior and interior of the SHACMAN brand cold van box vehicle are with FRP(Fiber Reinforced Plastic), and the middle with PU slices with vacuum negative pressure one-formed casting as the insulation layer, approved the related Ministry of Health of food grade requirements, etc. just like sandwich structure. Baseboard adopts anti-skipping diamond board, which assuring the insulation ability and the compact resistance of the baseboard. double rear door opened. Choose high quality USA imported THERMO KING self-powered frozen refrigerating reefer , the lowest temperature is up to -15℃. And the reefer can be adjusted at the driver cab.
If you're interested in our refrigerated truck, please feel free to send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: 0086 13329899995.
More pictures of SHACMAN brand 10T-15T refrigerated truck is as below.

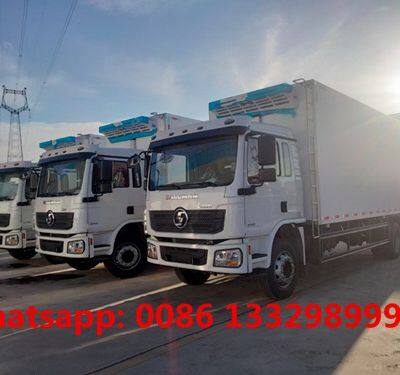

Shacman Brand refrigerated truck for sale
main technical parameters of SHACMAN brand 10T cold van box truck for sale
main technical parameters of SHACMAN brand 4*2 LHD diesel refrigerated truck is as below.
Items
| Descriptions
| Specifications and Types
|
General
| Truck Name
| SHACMAN LHD Refrigerated truck for sale
|
Drive Type
| 4*2 LHD(right hand drive)
|
Fact Loading capacity(kg)
| 10T
|
Curb Weight (kg)
| 7815
|
Approximate Overall Dimensions (mm)
| 8050×2500×3800
|
Cold van box body dimension(L*W*H)
| 5800×2400×2630
|
Engine
| Engine Model
| WP6.210E32
|
Engine Brand
| WEICHAI
|
Fuel Type
| Diesel
|
Power
| 155KW/210hp
|
Emission Standard
| Euro Ⅱ
|
Displacement(ml)
| 9230ml
|
Cylinder nos.
| 6 cylinders
|
Chassis
| Chassis Brand
| SINO TRUK HOWO light duty
|
Tire Specification
| 6*10.00R20
|
Wheelbase (mm)
| 4500
|
Axle No.
| 2
|
Axle
| 4.8T front axle
|
Steering Wheel
| Left hand drive
|
Gear Box
| 8JS85TE-C fastgear 8 speed manual gearbox
|
Air-conditioner
| Without, the air conditioner is selective
|
Driver cab
| SHACMAN L3000 One row and a half driver cab
|
Front/rear tread(mm)
| 1900/1810
|
Approach/departure angle(°)
| 24/14
|
Front/rear suspension(mm)
| 1300/1950
|
Max speed(km/h)
| 89
|
Cold Room
| Approximate Box inner dimension(mm)
| 5800×2400×2630
|
Box Side
| Exterior and interior with FRP(Fiber Reinforced Plastic), and the middle with 100mm PU slices with vacuum negative pressure one-formed casting as the insulation layer, approved the related Ministry of Health of food grade requirements, etc. just like sandwich structure.
|
Box Floor
| Baseboard adopts anti-skipping diamond board, which assuring the insulation ability and the compact resistance of the baseboard.
|
Doors
| Double rear doors open
|
Refrigerator Unit
| Reefer
| Choose high quality China or USA imported CARRIER vehicle-powered frozen refrigerated unit, the temperature can be up to -18℃. And the reefer can be adjusted at the driver cab.
|
Refrigerated temperature
| --15℃ to 0℃
|
>>
