Product Description
Product Description

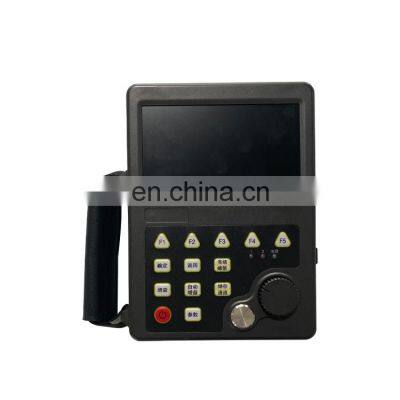

U600 Digital Ultrasonic Flaw DetectorTechnical parametersproduction descriptionU610U620U630Working principleUlrasound(pulse echo1/echo-echo)Working frequency rance0.5-20MHzPulse WidthSquare wave width 30-1000ns, adjustable, step 0.1nsDetection range0 to 14000(steel longitudinal wave)mmPules displacement-45 to 1000(steel longitudinal wave)mmMaterial sound velocity300-15000m/sValveOff/incoming wave /lost waveDAC, AVG functionDAC curve, AVG curveDynamic Range≥30dBPhysical dimension 180x130x40mm(HXWXD)Product Usage and FeaturesU600 Digital ultrasonic flaw detector and thickness measurement integrated machine integrated ultrasonic flaw detection, ultrasonic thickness measurement, and ultrasonic penetration functions in one. It has various functions such as ultrasonic thickness gauge, WIFI connection network or mobile phone, HDMI, digital filtering, etc., applicable Ultrasonic testing for the surface requirement of ergonomics, and is simple, intuitive, convenient and practical. Provides a very high level of flaw detection with simple basic operations, which makes ultrasonic flaw detectors easy to use for both experienced and novice industry personnel.U600 brings together modern high-tech such as ultrasonic flaw detection, thickness measurement, computer, electronics, mold, technology, etc., to achieve the perfect combination of these high-tech. It provides the industry with more superior performance and more powerful machines, which can be widely used in various fields such as petroleum, chemical industry, metallurgy, shipbuilding, aviation, and aerospace.1.Small size and light weight, including the battery weight is only 0.75kg.2.Built-in domestic and foreign industry standards: The instrument has 11 national standards built-in, compatible with European standards.3.EN12668-1: 2010, which is convenient for setting various DAC and AVG curve parameters.4.Accurate flaw detection High sensitivity.5.High-precision thickness measurement. Coating can be penetrate (U620 /630).6.High-resolution 5.0-inch (800 × 480) widescreen true-color TFT LCD display.7.Recording function and mass data storage.8.HDMI interface Support for teaching use (U630)9.WIFI communication Query flaw detection results anytime and anywhere (U630)10.Low power consumption design Reliable function.Product Description · Integral design, compact size · Easy to carry and make work efficient ·Low power consumption design reliable function·Accurate flaw detection hign sensitivity: with degital filtering function, accurate selection of frequency bands.·Hign-precision thickness measurement Penetrable coating(U620/630)·Hign-definition display interface style can be adjusted.-Recording function mass data storage.-HDMI interface support for teaching use(U630).-Automatic calibration and test function.Our AdvantagesInstallation and training · If buyers visit our factory and check the machine, we will teach you how to installand use the machine, and also train your workers/technician face to face. · Without visiting, we will send you user manual and video to teach you to install and operate.After Service · One year guarantee for whole machine. · 24 hours technical support by email or callingAny questions, please contact me without hestitation, welcome your inquiry!Price can be negotiatedour customerCompany Profile ` Cangzhou Lovely Group Co.,Ltd. is a professional manufacturer specializing in Testing Equipment,Universal Testing Machine ,Asphalt Tester,Test Moldsand Soil Road Lab Tester,supply verious type of products ..... We assure high quality to you. · All our products are made in China .Excellent quality with competitive pricePacking & Delivery · Tianjin port or Qingdao Port deliver by sea and Also can ship by air via express companyFAQQ1: Are you a factory or trading company? A: We are a factory specializing in manufacturing all kinds of scaffolding material.Besides, we could also purchase products as request. Q2: Where is the loading port?A: Tianjin port or Qingdao Port.Q3:How to choose the Transportation Term? A:Usually,we may according to your needs,we may choose the most rasonable freight,thento select for you. Q4: What certificates do you have? A: We have ISO 9001, CE, SGS. Q5: Do you have an OEM service? A: Yes. We can provide OEM services according to your requirements.Q6: What are the payment terms? A: T/T payment is preferred and other could be accepted, such as L/C, D/P, Western Union, PayPal etc. It is negotiable.Related ProductsTitle goes here.Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding MachinePET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.Title goes here.Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding MachinePET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.Title goes here.Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding MachinePET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding MachinePET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.Title goes here.Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding MachinePET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding MachinePET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
>>
