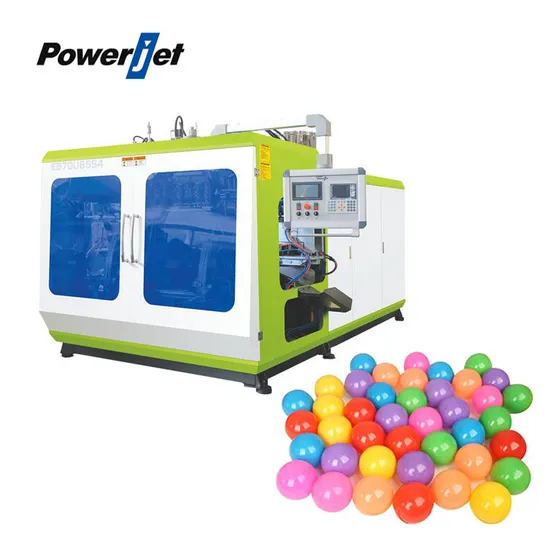

High-Performance Extrusion Blow Molding Machine for Ocean Balls

Product Description

Products Description
FEATURES:
1:Toggle balance clamping structure, with platen opening & clamping and mold platen movement by linear guide, to achieve low friction and high speed.
2:Based on the Finite Element Analysis design, and platen, toggle and platen frame made in high intensity nodular cast iron.
3:High speed mold clamping oil cylinder with differential speed function, and high speed mold moving cylinder with special anti-shock cushion valve structure.
4:Specially designed to screw with high L/D ratio insures good plasticizing and stable extrusion; high precision and no part line die head guarantees customers' top quality requirement.
5:Multi-screw & multi-die head can be adopted to improve the quality of the product and lower down the cost of material.
6:Multiple-way PID controlled temperature heating is precise and stable.


Product Paramenters

MODEL	UNIT	EB70U75S EB70UW75S	EB70U85S EB70UW85S	EB70U75S-plus EB70UW75S-plus	EB70U85S-plus EB70UW85S-plus
Max.Product	L	7	7	10	10
Clamping Force	kN	85/110	85/110	160	160
Max.Mold Size(WxH)	mm	480x450		480x460
	mm	580x440		580x420
Screw Diameter	mm	Φ75	Φ85	Φ75	Φ85
Screw L/D Ratio	L/D	24	24	24	24
Screw Rotary Speed	RPM	65	60	65	60
Extrusion Weight(HDPE)	kg	80	120	80	120
Extrusion Motor Power	kW	22	30	22	30
Pump Motor Power	kW	11	11	11	11
Heating Capacity	kW	19	21	19	21
Operation Pressure	Mpa	0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8
Air Consumption	m³/min	3.0	3.0	3.0	3.0
Cooling Water Consumption(25ºC)	L/min	100	100	100	100
Machine Dimension (LxWxH)	mm	4220x3170x2600		4880x3490x2700
Machine Weight	kg	6000	6200	6100	6300

Company Profile
POWERJET PLASTIC MACHINERY CO., LTD. was founded in 2000, the headquarter is located in Foshan high tech Industrial Park, Sanshui, Foshan in Guangdong Province, occupying an area of 130,000 square meters.POWERJET is a high and new technology enterprise of R&D, manufacturing, sales, after-sales service of injection molding machine and extrusion blow molding machine.

In a production area of more than 50,000 square meters, we have an automated production line and an active staff. Lean organizational structure, efficient operation and ultra-modern machinery and equipment to ensure the production efficiency and flexibility, allows us to ensure quality and the fastest production cycle at the same time, at very competitive prices. Annual production capacity has reach to 4000-5000 injection sets of.
FAQ
Q1: Are you a manufacturer or trading company?
A1: We are a factory for plastic machines. Over 20 Years Experience In Manufacturing Injection Molding Machine And Blow Molding Machine.
Q2: Delivery time
A2: Normally Machine Delivery from the factory in 0-60 days after receiving the down payment. (During Chinese Public Holidays like National Day or Chinese New Year, the delivery time should be 10-30days longer accordingly).
Q3: Where is your factory located?
A3: Our factory is located in No.5 Chuangxin Xi Road, Leping Town, Sanshui District, Foshan City, Guangdong Province, China. 1h drive from Guangzhou to our factory. Welcome to visit our factory.

---
