Powder Coating Gun System (COLO-800D)

Product Description

CE Powder Coating Painting Spray Gun for wheels/ motorcycle coating (Colo-800D )
Model No: Colo-800D
Certificate: CE
Delivery: 1-2 working days according to the order
Packing: paper Carton
Packing dimension: 0.8 CBM
G/N: 65/63kg
Remarks: With one-touch intelligent operation button flat parts, complicated parts, recoat parts different shape coating model can be choosed.
Technical Data

Electrical Data
Power Range	220V/110V
Frequency	50HZ/60HZ
Temperature range in use	-10 ºC+50 ºC
Powder Gun
Gun weight	500G
Rated output voltage	24VDC
Input voltage	- 200kv
Maximum output current	180Ua(max
Maximum output voltage	0-100KV (adjustable)
Maximum powder injection	600g/min
Polarity	negative (-)
Pneumatic Data
Maximum input-air pressure	10kg/cm
Optimum input-air pressure	6kg/cm
Minimum input-air pressure	4kg/cm
Maximum oil vapor content of compressed air	1.4g/N m3
Maximum compressed-air consumption	13.2 m3/h

Specification &Advantage
1.0-100 Digital Adjustable KV ,Fully Adjustable Amperage
2.With three setting program,flat mode for flat shape workpiece, corner mode for complicated shape workpiece, recoating mode for respraying , easy for operation and suit for both beginners and specialist.
3.Fully Adjustable Air for Pump on Pressure, Dosage and Nozzle Rinsing Air.
4.Comes with Full Array of Nozzle Assortment. Round nozzle and flat nozzle ,suit for different workpiece .
5. suitable for medium and large production capacity
Powder coating Gun Colo-08, 2015 New Model:

Weight of gun	550g
Length of gun	330mm
Power source	AC220V/110V
Frequency	50~60Hz
Power consumption	50w
Voltage input	DC24v
Voltage output	100kv
Max.current output	180
Polarity	negative
Max.injection capacity	650g/min
Air consumption	max.13N/H
Temperature rage in use	-10~50

Powder Coating Hopper :
Size : DIA:36CM x High: 62cm 50lb fluidizing hopper.
Package

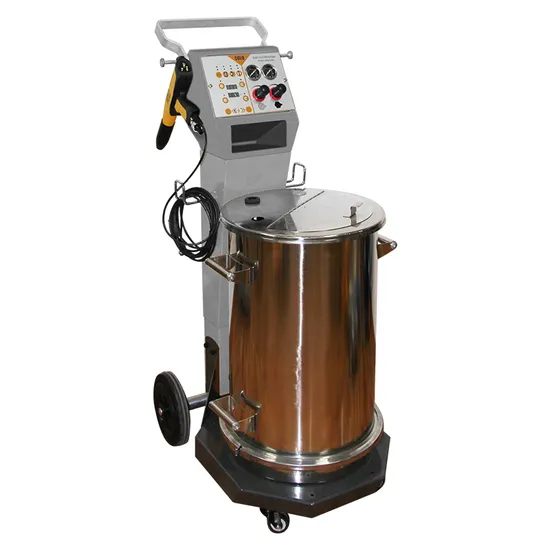

One package will included 1 pcs spray gun+1 pcs controller+1 pcs trolley+1 pcs seperator+1 pcs powder pump+1 pcs powder hopper +air hose/powder hose
we have two packages ,wooden box & paper box .If small package ,ship by express ,we will use paper carton .If ship by sea or air ,can choose wooden box and wrapped with the pearl.
Application
Now ,powder coating is a new hottest trend in the industry .many factory choose powder coating ,replacing the liquid paiting because of the economic ,safety ,no pollution and goods effect. It can apply in LPG cylinder/fan /refrigerator/Shelf/door/electric cabinet/aluminum profiles/auto wheels/Fire extinguisher industry.
Customer Visiting&Exhibition
We have went to many exhibitions durning our 11 years running .Also many customers visit our company ,check the goods and discuss to expand our business .
Buying Guide
We can ship this products in 2-3 working days after payment .can choose DHL ,UPS,TNT ,Fedex Express as you like.
If you are interested in this product ,pls feel free to contact us

Address : No.57 Xiangcang RD,Xihu District,HangZhou city, China

---
