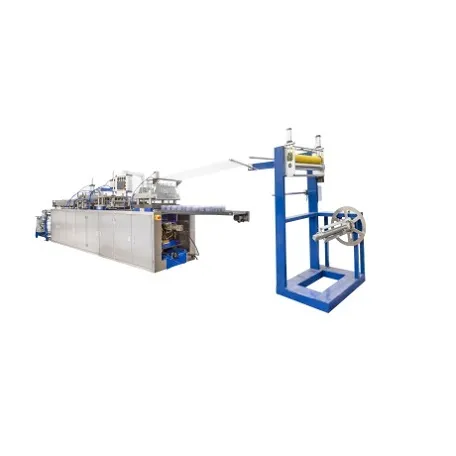

High Speed Automatic Plastic Flat/Dome/Coffee Lid Forming Machine

Product Description

High Speed Automatic Plastic Flat/Dome/Coffee Lid Forming Machine
MODEL-450/600 Hardware thermoforming machine is a new type of machine developed by our company according to the market and customer's demand. The machine is a kind of multi-station automatic machine, which has the synchronous complete forming, punching, and cutting, so easy to get the end plastic products. Therefore, the input of labor and the cost of production is greatly reduced, and the work efficiency is much more improved. It can be applied to metal, food, medicine, cosmetics and other PS/PET/PVC/PLA plastic products.
technical parameter:

Model	MODEL-450/600 Hardware
Suitable Sheet	PVC, PS, PET
Largest Forming Area	600mm*450mm
Maximum Width	620mm
Maximum Depth	80mm
Power	28Kw
Air Pressure	0.6-0.8Mpa
Production rate	15-30die/min
Depth of Sheet Material	PS/PVC: 0.10mm-0.80mm PET: 0.10mm-0.60mm
Weight	4300Kgs
Overall Dimension	4300mm*1250mm*1900mm(L*W*H)

Samples:
Our service:
1. warranty: 12months. if the spare part is broken in the warranty period, we will send a free replacement part as free.
2. Installation and training: we can send engineer to install and run the machine, but all the charges should be paid by buyer, as visa, two-way tickets, meals and accommodation, etc.
3. Quotation: valid for 30days.
Machine Feature:
Compact structure, stable operation, simple operation, convenient maintenance;
Servo adjustment, interface touching screen;
Adjustable moving-trip, mould replacement is simple;
According to user requirements design mold;
Shipment:
Contact: Miss Pearl

---
