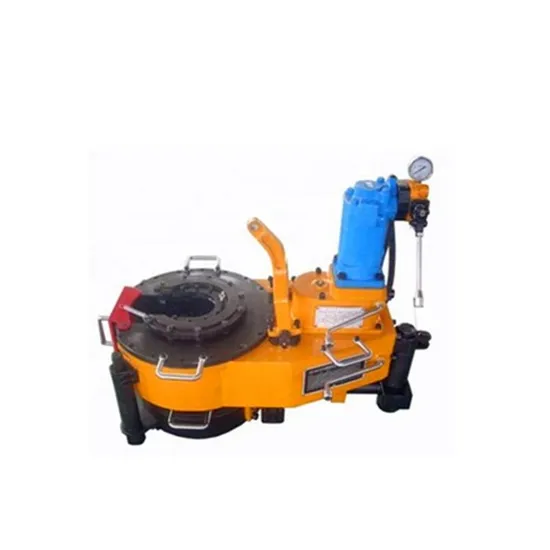

Oil Drilling Rig Equipment Wellhead Tools Xq28/2.6 Sucker Rod Hydraulic Power Tongs

Product Description

Oil drilling rig equipment wellhead tools XQ28/2.6 Sucker rod hydraulic power tongs Product Description Product Application The TQ series of hydraulic tubing power tongs adopt inner cam rolling-up clamping mechanism, with a hydraulic backup tong. It is an ideal tool for makeup or breakout of various of tubings, and small sizes of casings and drill pipes in workover operation. The power tong with extra long rod is available for backup tong to grip tubing body. The power tong also can be equipped with automatic torque control system.

Model		XQ89/3YC	XQ114/6YB	XQ140/12Y	XQ140/20	XQ140/30	XQ194/40
	mm	60-89	60-114	73-140	42-140	42-140	42-194
Applicable range main tong	in	23/8~31/2	23/8~41/2	27/8~51/2	1.66~51/2	1.66~51/2	23/8~75/8
	mm	60-114	73-141.5	89-156	60-153.7	60-153.7	60-215.9
Applicable range backup tong	in	23/8~41/2	27/8~51/8	31/2~61/8	23/8~6.05	23/8~6.05	23/8~81/2
	N.m	3300	6000	12000	20000	30000	40000
Max. torque	ft.lbf	2213	4425	8850	15000	22500	30000
Speed	rpm	30-90	20-85	14-72	13.5-58	9-40	5.9-25
Rated pressure	Mpa	10	11	12	17.5	17.5	17.5
	psi	1450	1595	1740	2500	2500
Max.oil supply	L/min	80	100	120	140	140	140
	gpm	21	26	32	38	38	38
size	mm	650×430×550	750×500×600	1024×582×539	1115×962×1665	1180×1000×1665	1400×1190×1935
	in	25.6×16.9×21.7	29.5×19.7×23.6	40.3×22.9×21.2	44×38×65.3	46.5×38×65.3	55×47×76
Weight(c/w backup tong)	kg	158	220	480	840	860	1180
	lb	348	485	1060	1840	1910	2600

Detailed Photos
Main Features 1,Without changing any part within the application range.
2,Adopt the braking belt,reliable braking.
3,Adopt teh petent valve which can solely control teh make-up torque and have over pressure protective function.
4,Choose and buy lengthening guide pole assembly,the backup tong can clamp the tubing body.
5,Torque Control System may be equipped acc to customer's request. Certifications
Packaging & Shipping
Company Profile HONGKONG EASTLONG TECHNOLOGY CO., LIMITED is principally engaged in the manufacturer and sales of tubing coupling, casing coupling, pup joints, and tool joints, etc. Located in Henan, China, we have more than 15 years of experience, and have obtained the ISO 9001 Quality Control Certificate, and API - 5CT Certificate.
With the largest API couplings workshop, we are one of the main manufacturers of API couplings. We are the regular suppliers of Petro China and Sinopec, and our market has expanded internationally since 2009. Our products are widely accepted in USA, Brazil, Venezuela, India, Kazakhstan, Indonesia and other countries.

---
