Resin Sand Casting Automatic Double Head Core Shooting Machine Jd700

Product Description

JD700 Automatic Double Head Core Shooting Machine
1. Application

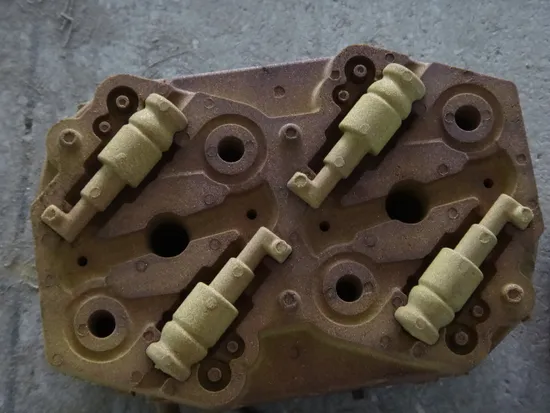

JD-700 automatic core shooting machine, is a four pillar open closed structure, automatic, manual manipulation of the hot core box core making equipment, core application quality of less than 3.2 kg. Its working principle is the core box sand dry branches into the heated quickly hardened to a certain thickness will be removed, get high quality sand core of smooth surface, precise size of the sand core.
2. Characteristic
1)High production efficiency: The hot core box core shooting machine working process is the sand filling and compaction completed at the same time.
2)Good quality of sand core: Can shoot sand core of any complexity, but the precise size, smooth surface, which can reduce the casting machining allowance.
3)Auxiliary equipment and tools can be saved by make sand core, Such as core oven, drying apparatus, the core of bone, wax line and so on.
4)Reduce the labour intensity, flexible operation, easy to grasp, using electric heating, automatic temperature control, the work site is easy to keep clean, to mechanized core making process, automation to create conditions.
5)This machine is suitable: Shooting dry sand
3. Main specifications and technical parameters
(1)Greatest weight of sand cores: 3.2kg
(2)The biggest size of core boxes(L*W*H): (400*400*180)mm; (400*400*130)mm
(3))Maximum distance between operating platform and ejector: (50-150)mm
(4)Shooting head stroke from left side to right side: 125mm
(5)Effective packing force of shooting head under pressure: 4900 N
(6)Maximum effective clamping force of vertical clamper: 4900 N
(7)Maximum clamping stroke of vertical clamper: 250 mm
(8)Compressed air pressure: (0.45~0.7) kpa
(9)Sand hopper capacity: (50× 2) kg
(10)Consumption amount of free air: 0.1 square meters
(11)Heating plate size (L× H): (300× 220) mm
(12)Machine net weight: 800 kg
(13)Electrical equipment installed capacity: 6.4kw
(13)Machine size(L× W× H): ( 1780*930*2100)mm
4. About after-sale services
In the meantime, we own strong administrant and technical teams to ensure that our innovation and improvement ability can keep up with changeable market requirements. In order to satisfy our customers better, we can also make machines according to our customers' specific needs.
Our after-sale service is prompt and patient. Once you place an order, we are willing to give you support in installment and labor training. During the production period, if you meet any problems that you are not able to deal with, you could contact us. We will try our best to help.

Main specification and technical parameters
Greatest weight of sand cores	3.2kg
The biggest size of core boxes(L*W*H)	(400*400*180)mm;(400*400*130)mm
Maximum distance between operating platform and ejector	(50-150)mm
Shooting head stroke from left side to right side	125mm
Effective packing force of shooting head under pressure	4900KN
Maximum effective clamping force of vertical clamper	4900 N
Maximum clamping stroke of vertical clamper	250 mm
Compressed air pressure	(0.45~0.7) kpa
Sand hopper capacity	(50×2) kg
Consumption amount of free air	0.1 square meters
Heating plate size	300mm*220mm
Machine net weight	800kg
Electrical equipment installed capacity	6.4kw
Machine size	1780mm*930mm*2100mm

---
