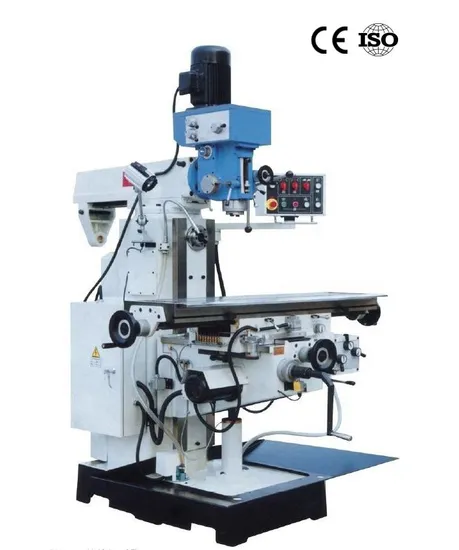

| Specifications | X6332Z |
| Table size | 1320x320mm |
| T slot | 5 |
| Size (Width) | 14mm |
| Centre distance | 63mm |
| Max. load of table | 300kg |
| Table longitudinal travel (manual/auto) | 800/750mm |
| Table cross travel (manual/auto) | 300mm |
| Table vertical travel (manual/auto) | 400mm |
| Spindle taper | ISO40 |
| Spindle speed/step--Vertical | 90-2000rpm/8steps |
| Spindle speed/step--Horizontal | 38-1310rpm/128steps |
| Max.drilling dia. | 30mm |
| Max. end milling width | 125mm |
| Max. vertical milling dia. | 25mm |
| Max. tapping dia. | 10mm(steel) |
| Quill travel | 120mm |
| Swivel angle of headstock | ±45º |
| Vertical spindle axis to column surface | 200-540mm |
| Vertical spindle nose to table surface | 180-610mm |
| Horizontal spindle axis to table surface | 0-350mm |
| Horizontal spindle axis to arm bottom | 175mm |
| Arm travel | 400mm |
| Longitudinal/cross feed | 20-360/8steps |
| Vertical/step | 422mm/min/1step |
| Longitudinal/cross rapid speed | 1200mm/min |
| Rapid traverse vertical | 422mm/min/1step |
| Automatic spindle feed | 0.08/0.15/0.25mm/rev (3steps) |
| Main motor | 2.2kw |
| (X/Y/Z) feed motor | 0.55kw(X/Y)/0.75kw(Z) |
| Coolant motor | 0.09kw |
| Packing size | 180x182x225cm |
| N.W/G.W | 2000/2200kg |
