Isuzu Giga 16 Wheels 16ton Hydraulic Mobile Straight Boom Arm Crane Truck with High Position Seat for Heavy Duty Equipments Delivery

Product Description

ISUZU GIGA 16 Wheels 16Ton Hydraulic Mobile Straight Boom Arm Crane Truck With High Position Seat For Heavy Duty Equipments Delivery
Truck crane ,also called boom truck crane,mobile truck crane , truck mounted crane , hydraulic folding truck crane,telescopic straight boom crane,truck with crane , crane lorry,hydraulic arm crane for trucks,pickup truck mounted crane,light truck with crane,folding arm hydraulic lift platform,hydraulic crane telescopic boom,mobile crane price ,self loader truck with boom crane,new forland lorry truck mounted crane,telescopic boom truck mounted crane,flatbed knuckle boom truck crane,6 wheelers truck with crane boom truck cranes sale etc
A crane mounted on a truck carrier provides the mobility for this type of crane. This crane has
two parts: the carrier, often referred to as the Lower, and the lifting component which includes the
boom, referred to as the Upper. These are mated together through a turntable, allowing the upper
to swing from side to side. These modern hydraulic truck cranes are usually single-engine machines, with the same engine powering the undercarriage and the crane. The upper is
usually powered via hydraulics run through the turntable from the pump mounted on the lower. In
older model designs of hydraulic truck cranes, there were two engines. One in the lower pulled the
crane down the road and ran a hydraulic pump for the outriggers and jacks. The one in the upper ran
the upper through a hydraulic pump of its own. Many older operators favor the two-engine system
due to leaking seals in the turntable of aging newer design cranes.
ISUZU GIGA 16 Wheels 16Ton Hydraulic Mobile Straight Boom Arm Crane Truck With High Position Seat For Heavy Duty Equipments Delivery
Product Description
1. Purpose: It's used for lifting and transporting all kinds of bulk cargo, and also applied in jetty and construction work.
2. Main parts: Crane. (Different lifting capacities match different chassis.)
3. Advantage: One truck combines the functions of crane and dump truck.

General Technical Parameters
Overall Dimension		11980×2500×3980 (mm)
Gross Vehicle Weight		24900(Kg)
Curb Weight		15800(Kg)
Chassis Specification
Chassis Brand		ISUZU
Drive model		8*4
Cabin		Double, Left Hand Driving, with air conditional
Number of Passengers		3
Engine	Model	4-stroke direct injection , 6-cylinder in-line with water cooling, inter-cooling, EGR
	Power	231KW/315HP
	Emission standard	EURO 4
	Displacement	8300(ml)
	Fuel type	Diesel
Gearbox		9Forwards & 1Reverse
Brake System		Air break
Wheel Base		1850+4600+1400 mm
Front/Rear Axle Loading		8000/11500(Kg)
Approach/Departure Angle		23/12(°)
Overhang		1250/3545(mm)
Tire		11.00R20
Max Driving Speed		90(km/h)
Upperstructure Specification
Cargo Body	Dimension		8600×2300×550(mm)
	Material		Q235 carbon steel
	Cargo Thickness		Side 1.5mm, Bottom 2.5mm
Working System	Boom Type		Straight 4-Arm telescopic boom
	Crane	Crane Brand	SANY or CLW
		Range of Sprayer	30m
		Max Lifting Moment	25(T.M)
		Max Lifting Capacity	16000(kg)
		Max lifting height	12(m)
		Rotation angle	360(°)
		Installation space	1150(mm)
		Recommented power	30(kw)
		Maximum working pressure	26(Mpa)
		Max Flow	63(l/min)
		Crane weight	3800(kg)
	Oil tank capacity		160(L)
	Leg	Leg type	H type
		Leg Span	2.28-5.9(m)
	Hydraulic system	Pressure	18(M pa)
		Capacity	70(l)
Other Configuration	Control system in 2 side; diamond palt, yellow warning fire; 2.5T arm, etc.
Options	Caution light, air condition, inlet valve, medicine tray, pneumatic valve, cylinder, etc.

ISUZU GIGA 16 Wheels 16Ton Hydraulic Mobile Straight Boom Arm Crane Truck With High Position Seat For Heavy Duty Equipments Delivery Chassic :
CNHTC , Beiben trucks , Shacman trucks , FAW trucks , ISUZU ,Hongyan trucks,FOTON trucks , Dongfeng trucks , JAC trucks
ISUZU GIGA 16 Wheels 16Ton Hydraulic Mobile Straight Boom Arm Crane Truck With High Position Seat For Heavy Duty Equipments Delivery

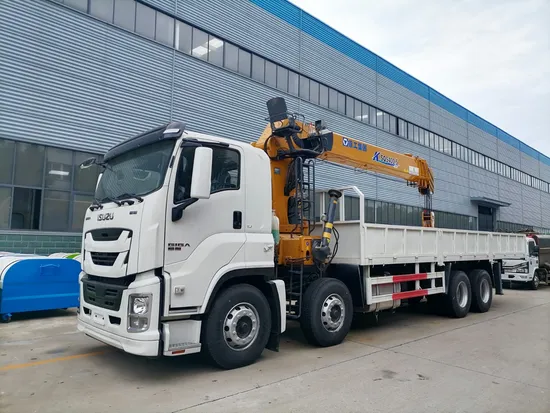

Product details picture :
ISUZU GIGA 16 Wheels 16Ton Hydraulic Mobile Straight Boom Arm Crane Truck With High Position Seat For Heavy Duty Equipments Delivery
Application: For general cargo lifting and other special things like timber and brick by changing other equipment.
ISUZU GIGA 16 Wheels 16Ton Hydraulic Mobile Straight Boom Arm Crane Truck With High Position Seat For Heavy Duty Equipments Delivery
