Wholesale and High Precision Automatic Dyz-20 (T) Hydraulic Drilling Machine

US$2,400.00-2,800.00 1 Piece (MOQ)

Basic Info.

Model NO.
DYZ-20 (T)
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
0
Hole Diameter
30mm
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Material
Stainless Steel
Spindle Travel
140mm
Working Table
370*400mm
Column Diameter
75mm
Main Spindle to Working Table
450mm
Motor
1.5kw/4p
Max. Drilling Diameter
30mm
Voltage
380V
Dimension(L*W*H)
700*350*820mm
Drilling Speed
400-1200r/Min
Transport Package
Wooden
Specification
400kg
Trademark
CDK
Origin
China
HS Code
8459700000
Production Capacity
500sets/Month

Packaging & Delivery

Package Size
70.00cm * 80.00cm * 150.00cm
Package Gross Weight
300.000kg

Product Description

Product Description

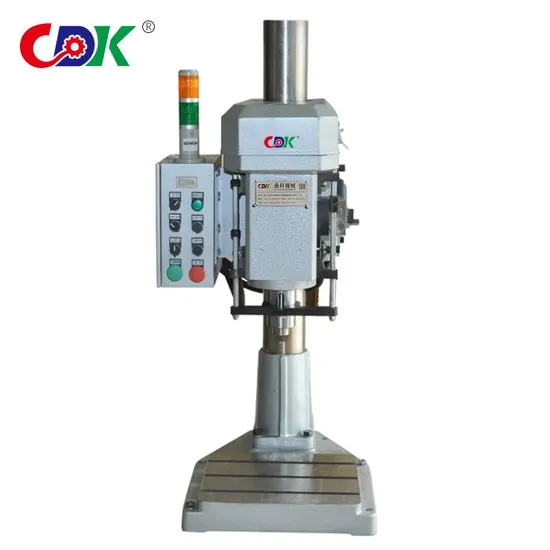

Wholesale and High Precision Automatic DYZ-20 (T) Hydraulic Drilling Machine
1. Automatic remove chip special function purchase2. It adopts oil pressure section feeding and drilling, especially suitable for deep hole, stainless steel and other processingconditions3. Machine feed and retreat with hydraulic power, perfect processing stability4. Cooperate with medium and large multi-spindle head to process according to various conditions to avoid the disadvantage of unstable air pressure and make the product quality more stable.
