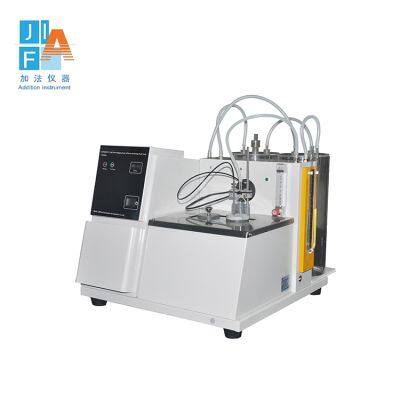

Cold Filter Plugging Point of Diesel Fuel Tester
Product model: JF0248Z
Product Introduction
The instrument adopts modern advanced technology, set mechanical, optical, electronic and computer technology in one, can automatically complete the test of petroleum products cold filter point, the instrument adopts photoelectric detection technology, imported compressor refrigeration system to ensure that the refrigeration depth to meet the requirements. The instrument has the advantages of reasonable structure, stable performance and simple operation. It is an ideal analysis and testing equipment.
Application: Used for cold filter point analysis of dark petroleum products, crude oil and other transparent or translucent petroleum products.
Technical Parameter
1. Applicable standards: ASTM D6371, SH/T0248, IP309
2. Temperature control range: -40～50℃; Resolution 0.1℃
3. Refrigeration method: high-quality compressor refrigeration
4. Working unit: 2 holes
5. Pressure measurement range: 0 ~ 200.0KPa; Resolution 1Pa
6. Temperature measuring element: PT100
7. Detection mode: upper photodetector
8. Cooling method: Air cooling
9. Ambient temperature:10～35℃
10. Ambient humidity: 30%～80% RH
11. Detection interval: Set by the user (1～10℃)
12. Working power supply: AC220V /50HZ
13. Power of the whole machine: 1500W
14. Instrument size: 700*690*560mm
15. Net weight: 55KG
16. HS Code: 9027899090
Main Feature
1. Computer control, automatic detection and automatic results
2. The instrument adopts split structure to eliminate the impact of vibration on flocs and test data
3. Equipped with the upper photoelectric liquid level detector, it can accurately detect the position of
the horizontal liquid level and judge the cold filter point accurately
4. The built-in vacuum pump and electronic precision pressure balance system are used to ensure the
automatic balance of suction pressure setting value
5. The temperature difference between the cooling medium and the tested sample is automatically
controlled to ensure that the cooling rate is controlled and uniform
6. The built-in precise microcomputer timing ensures the accuracy of the judgment results
Q: What services are supported?
A: Free lifetime online technical services are supported.
2.Q: How long is the warranty period of the equipment sold?
A: The warranty is for twelve months
3.Q: How long is the delivery time?
A: Within 3 working days after receiving the down payment for the products in stock, and the specific delivery time depends on the order quantity and products.
4.Q: What is the minimum order quantity?
A: For the equipment, the minimum order quantity will be 1 set. For the lab parts, please contact us for final confirmation.
5.Q: What’s your transportation?
A: Express, air, sea transportation are supported, and appointed forwarders are also supported.
6.Q: Do you accept customization service? Can I have my logo on the machine?
A:Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine.
7.Q: How to install and use the product?
A: Operating instructions or video will be sent to you online or by email. Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use.
8.Q: What’s the trade term and delivery term?
A: Most of the common trade terms are supported, like CIF, FOB, CFR and so on . We have ordinary instruments in stock, the delivery time is 1-7 working days. If there are not in stock, the delivery time is 15-30 working days after the down payment. If you are in urgent, we can consider making a special arrangement for you.
>>
