1. Product Explanation

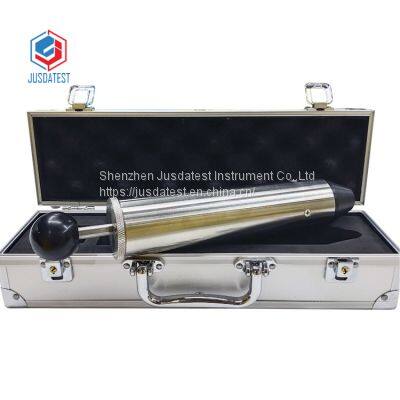

Spring impact hammer is designed according to the IEC60068-2-75 for testing the resistance of impact of electrical and electronic products. Spring impact hammer is the necessary test probe to check the safety performance of enclosure of electrical products under the condition of external mechanical forces.
It is used for the mechanical robustness testing of domestic and similar electrical appliances, electronic products, such as lights, enclosure of electrical accessories, lever, handle, knobs, indicator lights, signal lights, lampshades and so on.
Spring impact hammer can make sure that the tested products can withstand the possibility of reckless operations and other accidents. The electrical appliances can run safe and reliable and won’t cause harm to people.
1. Specifications and models
NO.
| Introduction
| Impact energy
| Main application
|
1
| Single-
speed
| 0.14±0.01J
| Mobile phone screen impact test
|
2
| Single-
speed
| 0.2±0.02J
| Glass and electric meter shell impact test
|
3
| Single-
speed
| 0.35±0.03J
| Lamps impact test
|
4
| Single-
speed
| 0.5±0.04J
| Plastic shell impact test
|
5
| Single-
speed
| 0.7±0.05J
| Products of the toy industry impact test
|
6
| Single-
speed
| 1.0±0.05J
| water pump products impact test
|
7
| Single-
speed
| 2.0±0.10J
| electric tools and other products shell impact test
|
8
| Six-speeds
| 0.14J—1.0J
| universal type (used in various industries)
|
2. Technical parameters:
1. Length: 211mm
2. Weight: single gear 1250g, sixth gear 1550g
3. Outer diameter: 50mm
4. Hammer head weight: 60g
5. Hammer radius: 10mm
6. Impact assembly: operating handle and hammer head, the hammer head is made of white polyimide
7. Shock release force: less than 10N
