High Precision Linear Motor for Lithium Battery Manufacturing Machine

Product Description

Product Description

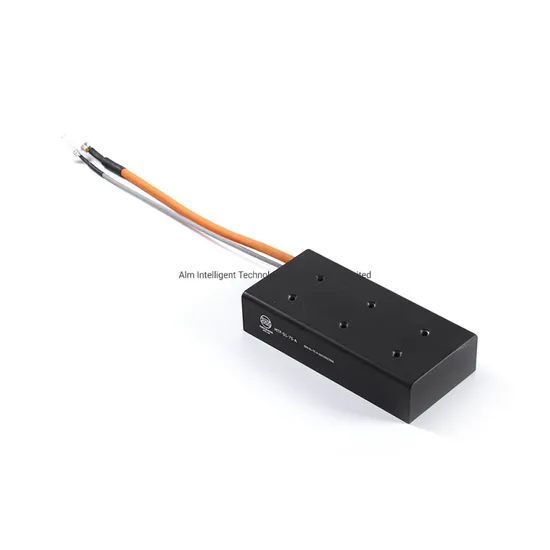

High Precision Linear Motor for Lithium Battery Manufacturing Machine
ALM proposed the Magnetic-track-free(MTF)linear motor for the first time in industry based on the innovation in the magnetic field theory.Remarkably,the stator does not need the magnetic track anymore,which can save the massive rare-earth materials.By iteratively optimizing the design and the manufacturing craft,MTF linear motor obtained the extremely high force density,operating speed and moving precision.Compared to high cost magnetic track linear motor on market,our linear motor can save on large amounts of rare-earth materials bring at least 70% COST SAVING,particularly on long track linear motors.


Product Parameters

Series

Motor

Continue Current

DC Bus Voltage

Maximum speed at rated force

Continue/Peak force

Mover width

Mover length

Motor height

50

100

200

400

800

1600

S1

MTF- S1- 50- A

1.5A

310V

5.4m/s

62N/160N

50mm

156mm

45mm

510V

8.9m/s

MTF- S1- 50- B

3.0A

310V

10.8m/s

510V

17.8m/s

MTF- S1- 75- A

3.0A

310V

4.8m/s

153N/346N

75mm

510V

7.9m/s

MTF- S1- 75- B

6.0A

310V

9.6m/s

510V

15.8m/s

MTF- S1- 90- A

4.5A

310V

5.4m/s

246N/479N

90mm

510V

8.7m/s

MTF- S1- 90- B

9.0A

310V

10.8m/s

510V

17.4m/s

MTF- S1- 100- A

4.5A

310V

4.6m/s

276N/538N

100mm

510V

7.6m/s

MTF- S1- 100- B

9.0A

310V

9.2m/s

510V

15.2m/s

S2

MTF- S2- 50- A

1.5A

310V

2.7m/s

124N/320N

50mm

300mm

510V

4.4m/s

MTF- S2- 50- B

3.0A

310V

5.4m/s

510V

8.8m/s

MTF- S2- 75- A

3.0A

310V

2.4m/s

306N/692N

75mm

510V

3.9m/s

MTF- S2- 75- B

6.0A

310V

4.8m/s

510V

7.8m/s

MTF- S2- 90- A

4.5A

310V

2.7m/s

492N/958N

90mm

510V

4.3m/s

MTF- S2- 90- B

9.0A

310V

5.4m/s

510V

8.6m/s

MTF- S2- 100- A

4.5A

310V

2.3m/s

552N/1076N

100mm

510V

3.8m/s

MTF- S2- 100- B

9.0A

310V

4.6m/s

510V

7.6m/s

Our Advantages
MTF linear motor advantages

MORE SAFE	No magnetic field in stator,easier for assembling,much lower risk for operators
MUCH SMALLER ATTRACTION FORCE	About ⅓ of the conventional linear motor attraction force can reduce the friction and cogging force significantly,thus to increase the life expectancy and reduce the operating noise.
MUCH SMALLER COGGING FORCE	Benefited from the low attraction force and the specialized optimizing design,MTF-LM can obtain the extremely low cogging force.
MORE ADAPTIVE	With low requirement for the ingress protection,and reduce the EMI grade obviously
EASIER FOR PROTECTION	Not easy to attract the sundries and ashes into the motor,easier for protection
HIGHER COST-EFFECTIVE	Benefited from the rare-earth material saving,MTF is trying to provide the most cost-effective products for customers.

Application

The applications of MTF linear motors from ALM in the following area can bring significant advantages for our customers. - Ic Package
- Testing Of Semiconductor equipment
- Ic Patching
- Photovoltaic Panel manufacturing
- Laser Cutting equipments
- Medical Apparatus And Instruments
- Machine Tool
- Lithium battery manufacturing
- Optical Equipments
- Panel display manufacturing

Company Profile
ALM originally established in year of 2005.From a small factory,ALM nowadays own factory 7000 square meters,109 employees.Above 8 technical engineers are with over 20 years' experience in linear motion filed.

With the products covering more than 72 countries in Europe,North America,South Asia,Middle East,Africa,Latin America and Australia,New Zealand etc.With super quality and service,ALM has been widely recognized and highly valued by its high-end and picky customers,and thus remains at the top of their vendor lists.In year of 2016,our Dr team carryied out new innovation linear motor testing.

ALM key production machines are imported,like high precision CNC grinding machine,3 axis,4 axis machining centre,internal and external grinding centre,CNC lathe.With advanced production management enables ALM obtain the quality certificate ISO9001:2008 and IATF16949.The R&D achievements over many years bring ALM more than 26 national patents.
ALM's office
ALM's workshop

ALM product processing
ALM's warehouse

Certifications
Patent Certificate for invention and utility model
CE certificate
Main Products
Our Main products are consist of ball screw,linear guide,lead screw,linear module and linear motor



FAQ
1.Why can ALM be your better option for linear motion components?
With more than 16 years of industry experience,quality assurance,factory directly price.

2.What is your main products ?
Our Main products are consist of ball screw,linear guide,lead screw,linear module and linear motor.

3.How to Custom-made?
Step1:Send us your drawing for checking.CAD or 3D format.We will check the production feasibility.Our specially trained engineers will help you find out the best solution based on rich projects experience.

Step2:We make our production drawing for your checking to avoid misunderstanding.And to ensure each dimensions comply with your requirements.

Step3:Prepare for sample

Step4:After samples approved on your prototype.Move to mass production
4.When can I get the quotation?
We usually quote within 24 hours after we get your inquiry.If you are very urgent to get the price,please call us or tell us in your email so that we will regard your inquiry priority.

---
