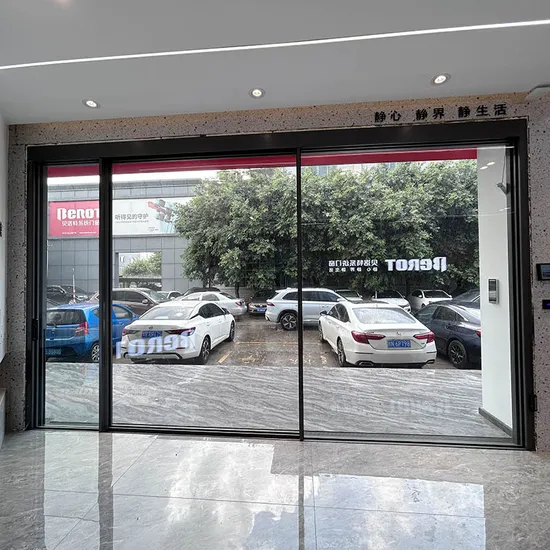

| Model No.: | Automatic Face ID FRAMELESS SLIDING DOOR |
| Glass Installation way: | Install inside |
| Open Mode: | Sliding /Folding |
| Size(mm) W*H: | 2990*2580 |
| Aluminum alloy frame Profiles: | Material: 6063-T5 high quality aluminum profiles |
| Thickness: 1.6mm/2.0mm |
| Frame Surface Treatment and Color Option: | Powder coating: Sky Grey, Dark Black, White or customized |
| Anodized: Light grey or customized |
| PVDF Coating : Golden,Light grey |
| Wood Grain: Gold Paulownia, Grey Alder Wood |
| Glass specification and Option: | Double tempered glazing: 4mm+15A+4mm(standard), 5mm+12A+5mm (Optional), |
| Color: Clear, gray, green, brown. |
| Material: Double glass, tempered glass, insulating glass, reflective glass, laminated glass, low-E glass, bulletproof glass |
| Craft: flowers, mirror flowers, decoration bars, frosted |
| Hardware Option: | German brand (HOPPE, ROTO, GU) |
| Chinese brand (Facatory standard) |
| Locking details: | With Patented four sided six points lock system, that more safer and more sealed. |
| Lock points and locks base are made of 304 stainless steel, which is stronger and anti-oxidant. |
| Mesh Option: | Stainless steel security mesh |
| Aluminum security mesh |
| Package: | Protection foam with heat contracted plastic film/ wooden packing or customer's requirements |
| Parameters: | Double glass sliding doors |
| Sounds insulation: RW ≥ 30 dB |
| Wind pressure resistance: 4500 pa |
| Air permeation resistance: 70/150 |
| Water resistance: 450mm |
| N6 CLASS based on AS2047 STANDARD |
