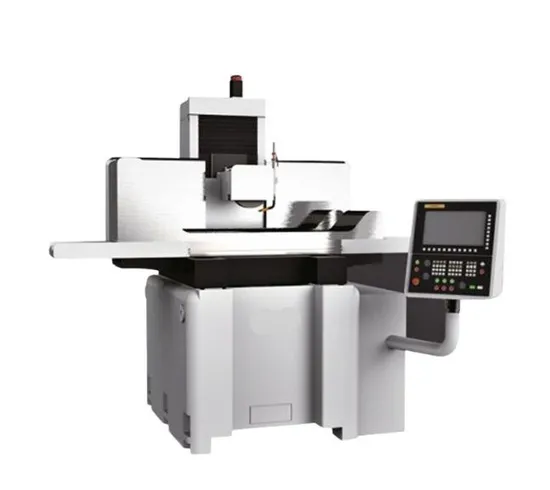

Precision CNC Surface Grinding Machine mm2050nc2

Product Description

Specificities:
lt adopts the Saddle Moving Structure, and themain components adopt the new symmetricalstructure design, which avoids the influenceof temperature difference on the accuracy andhas the rigidity of high-strength structure andgood damping performance.The precision of themachine can reach μm(0.001mm)level.
The table along the saddle left and right movingguideway for double V guideway, guide rail surfaceusing manual precision scraping development, leftand right moving by independent hydraulic stationclosed hydraulic system drive, with strong rigidity,small thermal deformation, high grinding accuracy.
Preloaded precision linear guideway and preciseball screw drive are used for the lower and frontand back movement of the grinding head, whichcan do accurate feeding with high repeatability.Special designed spindle, with dynamic oil pressuretechnology, quill structure fitted, spindle motordirectly connected with flexible coupling.

Model No.			MM2050NC2
Item No.
General capacity
Table size (WxL)			210x480 mm
Table Max .Travel (WxL)			260x580 mm
Magnetic chuck (WxL)			200x460 mm
Table T-slot			14x1 mm x No.
Table Speed			3~25 m/min
Max distance from spindle center to table surface			450 mm
Max. loading capacity of table ( include magnetic chuck )			120 kg
Cross Feeding	Electronic handwheel feed	Impulse Per. Gra	0.0005/0.005/0.05 mm
		Inching Per. Gra	0.0005 mm
	Auto feed	Continuous feeding speed	1~1000 mm/min
		Step feed	0.1-50 mm
	Rapid speed		50-1000 mm/min
Wheelhead vertical moving	Electronic handwheel feed	Impulse Per. Gra	0.0001/0.001/0.01 mm
		Inching Per. Gra	0.0001 mm
	Auto feed		0.0005~0.005 mm
	Precision Grinding		0~10 time
	Rapid speed		500 mm/min
Grinding wheel	Grinding wheel size(OD*W*ID)		200x13x31.75 mm
	Wheel speed ( inverter control )		0~3600 rpm
	Speed setting		Precision grinding setting/Wheel Dressing
Motor power	Spindle Motor		2.2 kw
	Coolant Motor		0.125 kw
	Elevating Servo Motor		3 N.M
	Cross Drive Motor		8.5 N.M
Hydraulic Unit Motor			2.2 kw
Total rated power			6 kw
Machine weight			2800 kg
Parallelism of workpiece machining surface to table surface			300:0.003 mm
Workpiece surface roughness			Ra≤0.16 μm

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
