Hook Type Shot Blasting Machine/Sand Blasting Machine with CE ISO Certificate

Product Description

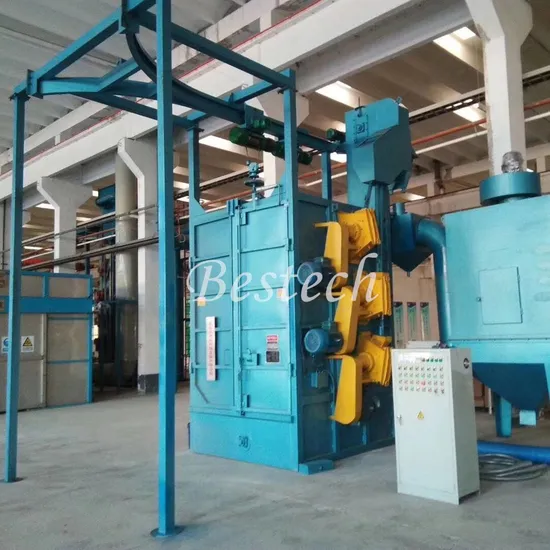

Machine Manufacturers Hot Sales New Design Hanger Automatic Shot Blasting Machine For Electronic Industry Surface Processing With Siemens PLC Pictures:
Product Advantage:
1. The turbine is composed of blast wheel, the structure is simple and durable.
2. Segregator is very efficient and it can protect blast wheel.
3. The dust filter can greatly reduce air pollution and improve the work environment.
4. Abrasion resistant rubber belt lighten the collision of work pieces, and lower the noise.
5. This machine is controlled by PLC, the operation is easy and reliable.
Product Introduction:
1. Shot blasting is a method used to clean, strengthen (peen) or Polish metal.
2. Shot blasting is used in almost every industry that uses metal, including aerospace, automotive, construction,foundry,shipbuilding rail, and many others. There are two technologies used: wheel blasting or air blasting.
1.Shot blasting chamber: 1 set
2.Rail systems (2 sets hanger): 1 set
3.Spiral pusher system: 1 set
4.Elevator system: 1 set
5.Separator system: 1 set
6.Maintenance platform: 1 set
7.Steel shot semi-automatic flow valve: 2 sets
8.CNC processing turbine: 2 sets
9.Transmission system: 1 set
10.Dust collecting system: 1 set
11.Electric system: 1 set
Machine Manufacturers Hot Sales New Design Hanger Automatic Shot Blasting Machine For Electronic Industry Surface Processing With Siemens PLC Features:
1. Shot blasting chamber body is made of 6mm manganese steel precision welding; the body with double wear-resistant manganese steel shield fastened by high wear-resistant nuts; Easy to repair and maintenance, greatly improving the maintenance. Machine body ensure 20 years use life.
2. Y type double rail input and output convey system, manual control loading and unloading, input and output convey(This way is safe)
3. The shot blasting chamber adopts compact and closed design, to ensure no steel shots splash.
4. Adopting Mayflay precision casting high performance shot blaster which is equipped with semi-automatic flow control valve to adjust the shot flow.
5. The recovery steel shot adopts spiral pusher + elevator+ air separator, the bottom is equipped with photo electricity induction system to monitor and alarm the pellet recovery system which is stable and reliable.
6. Dust collecting system uses dry dust collector,fire safety, without any spare parts, use cost low, dust emissions is less than 50 mg/m3.
7. Electrical system adopts Siemens system, and human-machine interface use 7 inches color touch control panel, 3D animation guidance prompt, powerful function.
8. All necessary labels on the machine are posted at distinct positions, such as safety tips, maintenance tips, operation standard, equipment status, customer service engineer card and service record sheet, etc.
9. All motors of the machine are driven by direct transmission, and the safety and maintenance performance are greatly improved.
How To Operate The Double Hooks Shot Blasting Machine ?
1.Work pieces are placed in work piece holders or are suspended directly from the running gear's rotating hook. The work pieces are then pushed into position in front of the blasting machine. An automatic feed mechanism then advances the work pieces to the first blasting position.
2.After the blasting program begins, the machine door is automatically closed and electro-pneumatically locked. As the work pieces rotate, they are blasted at three different blasting stations according to the pre-set blasting times.
3.The blasting abrasive is continuously cleaned, recirculated and reused. An abrasive metering device feeds the cleaned abrasive from the abrasive storage bunker to the high-performance turbines.
4.Upon completion of the blasting cycle and after the turbines have come to a complete stop, the machine door opens automatically and the suspended work pieces return to their initial position.
5.A fan unit creates the partial vacuum necessary to maintain dust-free operation of the blasting unit. Extracted air is cleaned in a special filter unit.
Product Process Flow:
Product Technology Data:

type	size of workpiece cleaned	carrying weight of single hook	carrying of shot-blasting	lifting capacity of hoist	separating capacity of separator	vntilation capacity	power	outline dimension
	mm	kg	kg/min	t/h	t/h	m3/h	kw	mm
Q376	600*1100	500	2*120	25	15	5000	19	4429*2850*3443
Q378	800*1500	1000	2*200	22	22	8000	32.5	4325*2660*5009
Q3710	900*1600	1000	2*250	0	30	9000	36.55	5047*3850*5156
QD3710	900*1600	1000	2*250	30	30	9000	39.65	5844*2742*5716
Q3720	1400*300	2000	3*250	45	45	15000	61.27	6110*3599*7842
Q3730	1600*2300	3000	3*250	45	45	15000	64.4	7085*4650*8652
Q3750	1800*2500	5000	4*250	60	60	18000	78.4	7062*5460*8652
Q3780	2000*3000	8000	4*250	60	60	20000	81.5	850*6400*8526

Bestech Double Hooks Shot Blasting Machine Important Parts:
Double Hooks Shot Blasting Machine Application:
Packing and shipping:
FAQ Q: How many days do you need to produce this hook shot blasting machine?
A: It depends on the size of the machine. Usually 15-25days for shot blasting machine and sand casting machine.30-45days for production line equipments.
Q: How to control your quality ?
A: First of all, we have professional technical team to design the machine. And we have strict production system, the quality inspection department will check the quality regularly. For the smaller machine we will install the machine at our workshop to make sure it can work well. For the bigger machine, we will install the machine for our customers until it can work well
Q: What's your machine quality guarantee?
A: Usually it's one year. We will choose the world famous brand components to keep our machine in perfect working condition.
Q: Can you instal the machine overseas?How long will it take?
A: YES, we have rich-experienced install team to instal the machine for our customers worldwide.

---
