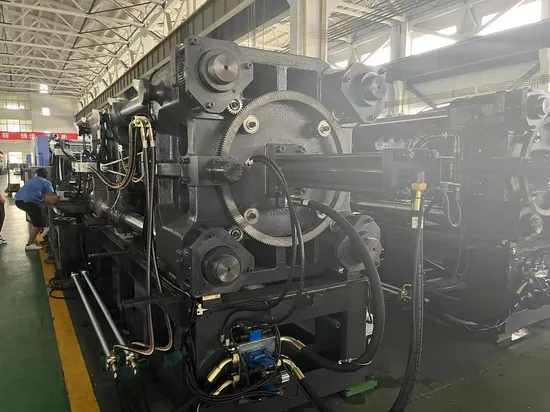

PP Plastic Injection Molding Machine for Bread Crate

US$25,000.00 1 SET (MOQ)

Basic Info.

Model NO.
LTY-HD900L
Type
Plastic Product Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008, GMP, QS
Transport Package
Wrap Film Packing Into The Container
Specification
160T
Trademark
LOYALTY
Origin
China
HS Code
8477101090
Production Capacity
1000sets/Years

Product Description

SPECIFICATION LTY-1600
A B C D
INJECTION UNIT
SCREW DIAMETER mm 42 45 50
SCREW L/D RATIO L/D 23.6 22 19.8
SHOT VOLUME(THEORETICAL) cm3 305 350 432
INJECTION WEIGHT(PS) g 277 319 393
INJECTION RATE g/s 138 160 196
INJECTION PRESSURE MPa 203 177 143
SCREW SPEED rpm 180
CLAMPING UNIT
CLAMP FORCE KN 1600
OPEN STROKE mm 435
SPACE BETWEEN TIE BARS(W*H) mm 480x480
MAX.MOULD HEIGHT mm 520
MIN.MOULD HEIGHT mm 180
EJECTOR STROKE mm 135
EJECTOR FORCE KN 50
OTHER
MAX.PUMP PRESSURE MPa 16
PUMP MOTOR POWER kW 18.5
HEATING POWER kW 10.35
MACHINE DIMENSION(L*W*H) m 5.16x1.45x2.12
OILTANK CUBAGE L 300
MACHINE WEIGHT t 6.3
