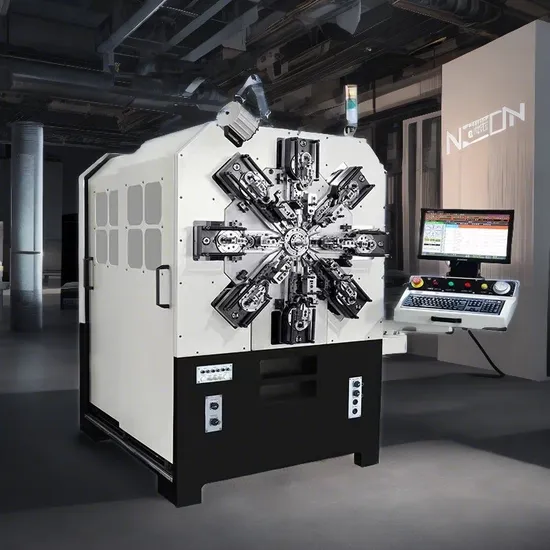

CNC Torsion and Compression Spring Bender with Automatic Wire Bender 0.4mm~2.3mm Spring Maker

Product Description

Product Description
Product Parameters

MODEL		CMM-12-236R Transfer Machine
Wire Diameter		0.4-2.3mm
Max.Wire Feed		10000.00mm
Min.Wire Feed		0.01mm
Max.Wire Feed Length		Infinite length
Number Of Axes		12 axes (including servo angle bender/Spinner)
Power		14.75KW
Voltage		380V
Software		Pentium Industrial Computer/Intel
Program Storage		Over 2000
Voltage Regulator Power		15000W
Air Compressor System	Air pressure	5-6KG/cm
	Air cylinder	3 pieces
Dimensions	Depth	2020mm
	Width	1440mm
	Height	1800mm
Machine Weight		1700KG
The above configuration parameters are subject to change without prior notice, please refer to the actual situation.

Installation Instructions
Application scenario
Samples
The Vinston CNC spring machine can make precision spring ,compression spring,extension spring,torsion spring, special-shape spring, custom-shaped spring, double torsion spring, battery spring, flat spring (spring spring) and a variety of line forming.

---------------------------------------------------------------------------------------------------
Contact us for more information

Company Profile
Vinston Machinary specializes in manufacturing advanced computerized multi-axes spring and wire formation machines. We have setup a distribution network in various locations in China, U.S., HongKong, Thailand, etc.

Our machines are designed and integrated with advanced technologies by top engineers from the U.S. Our products are highly competitive in terms of quality , ease of use, reliability, efficiency, and cost effectiveness. Our demand for quality has earned us great reputation; we have rapidly expanded a large customer base , which include the U.S., China, Thailand, Vietnam, India, Brazil, Russia, etc.
We have manufacturing base of over 10,000 square meters. Machines parts are being produced by most advanced imported machineries. We have employed over 100 professional mechanical manufacturing crews to ensure the quality of our product.
In future, the company will still insist its tenet to sincerely provide the customers from domestic and abroad with qualified products and excellent service.
Warmly welcome all the friends to visit us.
---------------------------------------------------------------------------------------------------
Contact us for more information

Certifications
Packaging & Shipping
Our Advantages
Our machines are designed and integrated with advanced technologies by top engineers from the U.S. Our products are highly competitive in terms of quality , ease of use, reliability, efficiency, and cost effectiveness. Our demand for quality has earned us great reputation; we have rapidly expanded a large customer base , which include the U.S., China, Thailand, Vietnam, India, Brazil, Russia, etc.
FAQ
The selection of spring bending equipment and your use of demand has a lot to do with the following information you need to provide.If you have ever used the spring former machine kindly please tell us wire diameter, wire material, the drawing of spring, spring accuracy requirement.
If never use the machine until now,please offer us the info as below:1.The country you are located: _____
2.The material you are going to choose:_____
3.The wire diameter:________
4.The kind of spring:_______
5.The finnal application scenario:_______
6.The language in machine is Chinese and English is that acceptable for you:_______
7.The drawing of the spring:_______
