US$15,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
HLV4020HTIR185R
Horizontal Resolution
540tvl
Certification
CE, FCC, CCC, RoHS, ISO9001: 2000
Feature
Waterproof / Weatherproof, High Definition, Mini Size, Vandal-proof, Auto BLC
Effective Distance
3m-90000m People`S Activities
Remote Control
With Remote Control
Thermal Camera Detect Vehicle
14400m
Thermal Camera Detect People
5040m
IR Lens
36-180mm, 5X Optics Zoom
Detector Type
Uncooled Fpa Vox, 640*512pixel
Power Supply
AC24V, Equipped with Wide Range Power Adapter
Protocol
Pelco-D, Pelco-P
Transport Package
Carton or Wooden Case
Origin
Jinan, Shandong, China
Production Capacity
50000 Set/Year
Packaging & Delivery
Package Size
65.00cm * 60.00cm * 45.00cm
Package Gross Weight
25.000kg

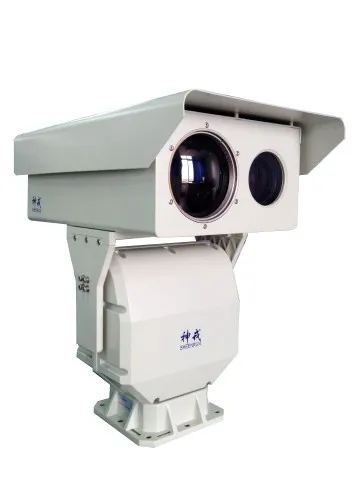

Product Description
1) Adopts zooming thermal technology, images clear
2) Day and Nigh low illumination CCD Camera
3) 360°pan rotating, can realize a full range monitoring and high accuracy position
4) Easy operation and maintenance
5) Passive thermal camera is easy to hidden
6) Sealed shell, smart shape, nitrogen inside, anti-harsh environment
7) Low power consumption, stable performance
| Distance | Visible light camera | 3m-90000m people`s activities |
| Thermal camera | Object | Human(1.8m×0.5m) | Car (2.3m×2.3m) |
| Detection | 5040m | 14400m |
| Recognition | 1260m | 3600m |
| Identification | 630m | 1800m |
| Image Lens | Focal Length | 12.5-1000mm |
| FOV | 0.4-22.6° |
| Visible Camera | Sensor Type | 1/1.8'' progressive scan CMOS |
| Encoding format | H.264/MJPEG/MPEG4 |
| Video Resolution | 1080P, CIF |
| Video code rate | 32Kbps~16Mbps |
| Video frame rate | 1~25frame/s(50hz), 1~30frame/s(60hz) |
| IR Lens | Focal length | 36~180mm,5x optics zoom |
| F value | 1.2 |
| FOV | 3.9°×2.9°~19°×14.5° |
| Spatial resolution | 0.14~0.69mrad |
| Detector | Detector Type | Uncooled FPA VOX , 640*512pixel |
| Resolution | 640×512 |
| NETD | ≤50mK |
| Image Process | Digital detail enhancement (DDE),pseudo color |
Pan-tilt | Max load-bearing | 50kg |
| Pan angle | 360° |
| Tilt angle | -60°--+20° |
| Pan speed | 0.01°- 12°/s |
| Tilt speed | 0.01°- 8°/s |
| Presets | 255pcs |
| Auto tracking paths | 8, each one have 10pcs presets |
| Protocol | Pelco-D,Pelco-P |
| Baud Rate | 2400/4800/9600/19200 bps optional |
| Interface | Power Interface | AC24V |
| Other Interface | 1×10Base-T/100Base-TX, RJ45 interface |
| Environment Indicator | Operation Temperature | -25ºC~+55ºC |
| Storage Temperature | -40ºC~+65ºC |
| Power Supply | Power supply | AC24V, equipped with wide range power adapter |
| Others | Weight | 50kg |
| Power consumption | ≤120W |
| Install Method | Outdoor Base |
>>
