Mining Wire Saw Machine for Granite Marble Quarry

Product Description

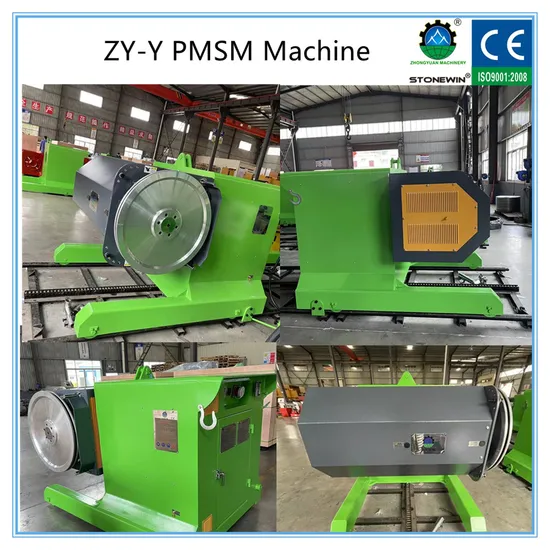

ZY-Y SERIES WIRE SAW MACHINE FOR MARBLE GRANITE QUARRYING
1.Being controlled by two sets of inverters and applying constant tension control principal ,
the moving speed of the machine can be adjusted automatically according to the changes of the cutting force to make sure the diamond wire saw
be in the best cutting condition all the time .
2.The machine is without phase request .It doesn't need to change or distinguish the power phase.The machine has the following
protection functions : wire broken protection,over-loading protection ,open-phase protection,terminal limit,and so on.
3.The lateral moving and the rotation angle of the cutting head are controlled and driven by electric motor .There is photoelectric proximity
switch installed on the cutting head for position limitation protection.This function enable the machine to work normally under harsh
circumstance with moisture and dust.
4.The real-time parameter are displayed on the control platform,such as the set current of the main motor,the current and the rotation speed of the
main motor ,etc.It makes the operation and adjustment of the machine more convenient.
5.The machine can be operated manually and automatically.The manual and automatic functions can be shifited from each other.
Under the automatic function,the machine can be unattended operated,and one worker is able to operate multiple machines.
6.Using Permanent Magnet Synchronous Motor,the wire saw machine is more energy-saving,larger touque,and higher efficient.

ZY-Y SERIES QUARRYING WIRE SAW MACHINE WITH PMSM PARAMETER
MODEL	ZY-70YG-12P
CUTTING MATERIAL	GRANITE
MAIN MOTOR POWER	70KW
FLYWHEEL DIAMETER	Φ800mm
WIRE SAW SPEED	0-33m/s
MAX.WIRE SAW LENGTH	20-150 meters
WALKING MOTOR POWER	1.5kw(2HP)
LATERAL MOVING DISTANCE	500mm
MAX.LATERAL CUTTING DISTANCE	1900mm
ROTATION ANGLE	360°
MACHINE WALKING SPEED	0-90m/h
RAIL LENGTH	2m*3+1m(7m)
ALLOWED WORKING TEMPERATURE	-15ºC~+40ºC
DIMENSION	2500*1600*1530mm
NET WEIGHT	3.5T

---
