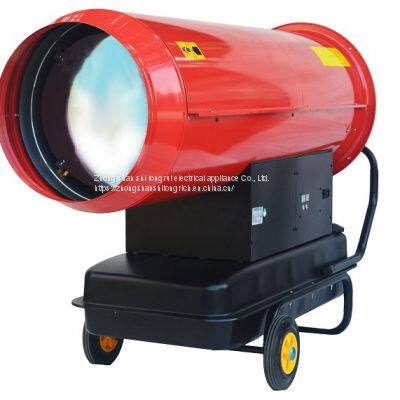

direct diesel space heater with double fan

Product Details

Product Description

Product Description
Compact and strong design.
Double motor, Independent combustion air flow supply.
It works on diesel oil or kerosene.
Stainless steel combustion chamber and heat exchanger.
Strong steel tank.
Equipped with oil level indicator.
Equipped with room thermostat to set up desired temperature,setting range:0℃-90℃
Cut-off protection by photocell and safety thermostat.
Danfoss high pressure pump and nozzle.
Waterproof class IPX4.
Robust wheels and handle make it easy to move.
Post-ventilation phase to recover accumulated heat from combustion chamber.
Oil filter.
Ventilation mode function.
Thermostat and cable for remote control available upon request.

Model	DH1-135	DH1-150
Heat Input* [kW] [Hs]	132	145
Air Flow Rating [m³/h]	3200	4600
Fuel Type	Diesel - Kerosene	Diesel - Kerosene
Fuel consumption [l/h]	13	14
Fuel Nozzle size [gph]	2.5	2.5
Pump presssure setting[bar]	13	15
Voltage [V/Hz]	230/50	230/50
Current Rating [A]	4.2	4.8
Electricl power Rating [W]	840	1050
Fuse Rating	T10.00A	T10.0A
Dimensions
Net Weight (kg)	63.0	92.0
Length (mm)	1450	1650
Width (mm)	690	690
Height (mm)	958	1125
Tank Capacity (l)	120	120
Operating range (h)	~9	~8
Standard Accessories
Fuel gauge	yes	yes
Handle	1	1
Ambient thermostat	built-in	built-in
Malfunction detection signal	built-in	built-in

---
