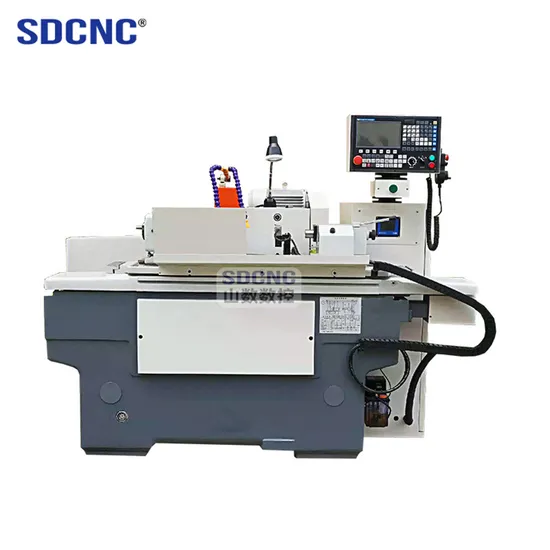

M1320 Universal Cylindrical Honing Crankshaft Centerless Motorcycle Cylinder Head Surface Grinding Machine

Product Description

SPECIFICATIONS

Cylindrical grinding machine	M1320-1000
Diameter of grinding	Dia.8~200mm
Maximum grinding length	1000mm
Maximum spindle load-bearing	50kg
Maximum travel of working table	1080mm
Speed of working table	100~4000mm/r/min
Rotary angel of working table	-3~+7°
Rotary angel of headstock	-30~90°
Rotary angel of grinding wheel	180°
Center height	125mm
Center sleeve taper	3#
Grinding wheel size	400*40/50*203
Speed of headstock	60,85,230,120,170,460r/min
Speed of grinding wheel	1780r/min
High-speed travel of grinding wheel	20mm
Maximum travel of grinding wheel	150mm
Feeding rate of grinding wheel handwheel per grid	0.005mm
Feeding rate of grinding wheel handwheel per rev	1mm
Power of grinding wheel motor	4kw
Power of headstock motor	0.25/0.37kw
Power of oil pump motor	0.75kw
Power of cooling motor	0.125kw
Dimension (length * width * height)	3100*1450*1650
Weight	3000kg
Roundness 0.002mm Cylindricity 0.003mm Roughness Ra0.32

COMPANY PROFILE
Shandong Shansu CNC Machine Tool Co., Ltd. is located in the traffic developed, economic prosperity of China's Shandong
Tengzhou City, is a professional engaged in CNC machine tool development and machinery manufacturing manufacturers. The
company with strong technical force, high quality and good reputation to win the trust of foreign trade users. Mainly produces CNC
machine tool equipment (CNC lathe, machining center horizontal machining center, vertical machining center, CNC vertical lathe,
CNC pipe thread lathe, CNC milling machine, CNC drilling machine, CNC slotting machine, CNC sawing machine and other CNC
products) ordinary lathe, milling machine series, shaper machine, metal sawing machine, slotting machine series, radial drilling
machine, vertical drill Bed and other machine tool

---
