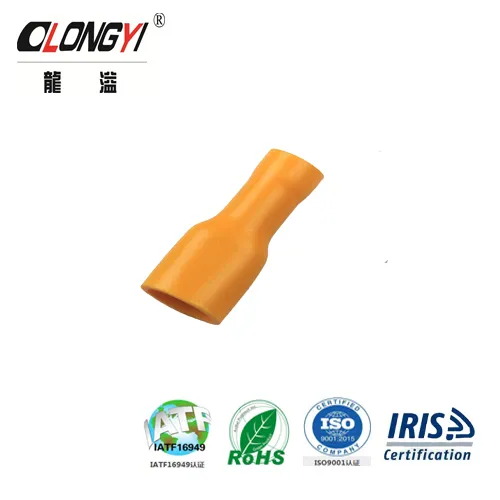

Insulated Female Connectors Copper Cable Lug for Cable Connection

Product Description

250 nylon male/female terminals
1, cable lugs are suitable for the connection of copper conductors in power cable with electronic equipment
2, Material: They are made of higher 99.99 % pure copper tube T2.
3, Working temperature -55oC-150oC
4, Surface: Tin-plated
5, Insulated material: PVC, nylon
The company has more than 95% of the full automatic production lines, nissan 200 tons, production capacity continues to adjust and expand, to meet the challenge of the market at any time.
Through the European CE safety certification, American UL safety certification, the company has a SC Japan JIS standard, the German DIN standards, AWG American standards, etc.
Companies always adhere to: quality first, service first, from raw materials into the factory inspection, process inspection to every working procedure, outbound packaging cengcengbaguan .
Company has own copper pipe, copper strip, copper platoon of raw material processing factory, with strong competitive advantage price on equal quality to every guest get the maximum benefits.
The main products take references to the technical standards and quality requirements of advanced industrial countries such as America, Japan, German, France. Our products are widely applied in all kinds of electric cabinets, transformers, electric equipment, wiring harness manufacture, railway, communication, ship industry, aircraft and, PV, wind power,etc.,at home and abroad. About 50 % of the products are exported to more than 100 countries and regions, such as Asia, European,America, Africa,etc., and our products are trusted by more than 800 famous companies, such as ZTE Corporation, Huawei Telecommunications, Haier Electronics, Toshiba Transformer, Siemens electrical appliances, etc.
The company owns advanced automatic production line. The molds for making products are all designed and made in our own factory. The raw material,copper pipe is also produced by ourselves, which strongly guarantees the purity and electrical conductivity of the copper, and the best quality of the products. The company has passed ISO9001-2008 system, the products are in accordance with ROHS, European CE,and American UL certificate. Longyi Terminals is famous products, and Longyi brand has been awarded as famous brand in Taizhou City,is also famous brand in terminal industry in China.

PART NO	ITEM NO	DIMENSIONS							WIRE RANGE		COLOR
		B	W	L	ID	OD	G	H	Twine mm 2	AWG
LY0029-0001	RF250FLP	6.8	9.6	23.7	1.8	3.9	6.4	7.4	0.75-1.25	18-16	RED
LY0029-0002	BF250FLP	6.8	9.6	23.7	2.3	4.2	6.4	7.4	1.25-2.0	16-14	BLUE
LY0029-0003	YF250FLP	6.8	9.6	24.1	3.5	5.5	6.4	7.4	2.63-6.64	12-10	YELLOW
LY0029-0004	RF250F	6.8	9.6	23.7	1.8	3.9	6.4	7.4	0.75-1.25	18-16	RED
LY0029-0005	BF250F	6.8	9.6	23.7	2.3	4.2	6.4	7.4	1.25-2.0	16-14	BLUE
LY0029-0006	YF250F	6.8	9.6	24.1	3.5	5.5	6.4	7.4	2.63-6.64	12-10	YELLOW

---
