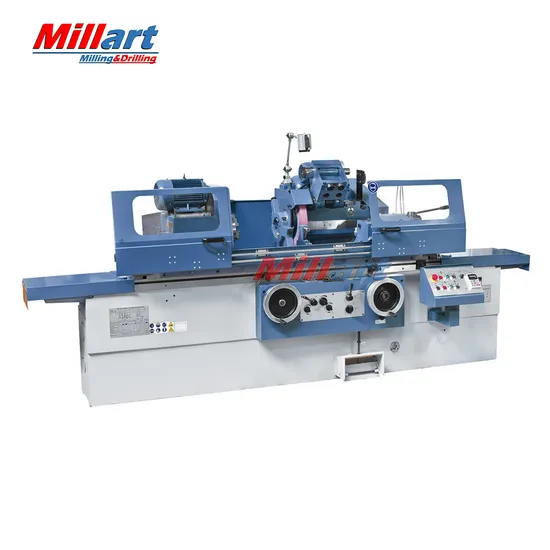

Cylindrical Grinding Machine M1432b Universal Grinding Machine

Product Description

Cylindrical Grinding Machine M1432B Universal Grinding Machine
Feature:
1. When conical grinding, the table can be swiveled to either side and exactly positioned by using the scale
2. Oil film between bearing and spindle keeps vibrations at a minimum level, hence achieving outstanding results and top accuracy
3. Precisely balanced spindle head and solid grinding head guarantee extraordinary results at any type of operation
4. Strong reinforcements and solidly designed panels of the machine base makes it resistant to temperature fluctuations and deformations
5. Spindle is mounted from both sides and features adjustable sliding bearings consisting of three segments
6. Hydrodynamic bearing of spindle, therefore no contact between spindle and bearing
7. Longitudinal table feed can be set to automatic mode -hydraulically driven or manual mode - by hand wheel
8. Stepless feed adjustments with the option of aprogrammable hold time at the end of each table movement
9. Hydraulic or manual repositioning of grinding spindle stock
10.Guide ways in x- and y-axis are precisely constructed and hand-polished
11.Longitudinal table guide and cross guide of grinding headstock each feature a V-guide and flat guide
Technical parameter:

MODEL		Unit	M1432B/1500
Distance between centers		mm	1500
Center height		mm	180
Dia Ground(O.D)		mm	8-320
Dia Ground(I.D)		mm	30~100
Max length ground(O.D)		mm	1500
Max length ground(I.D)		mm	125
Max weight work piece		Kg	150
Swiveling angle		°	+90°
Center taper(M50		Mt	4
Spindle speed		r/min	50Hz:25-220 Stepless
Wheel spindle speed		r/min	1670
Wheel head rapid travel		Mm	50
Max travel		Mm	246
Swiveling angle		°	+/-30°
Hand feed per rev			Rough:2 Fine:0.5
Hand feed per gra			Rough:0.01 Fine:0.0025
Wheel size		Mm	400x50x203
Peripheral velocity		m/s	35
Spindle speed		r/min	10000/15000
Dimension of wheel		mm	Max:50x25x13
			min:17x20x6
Hand feed per rev		Mm	6
Max swiveling angle of able	Clockwise		3°
	Anticlockwise		7°
Longitudinal speed range of table		m/min	0.1-4
Center tape(mt)		Mt	4
Quill travel		mm	30
Wheel head motor power		Kw	5.5
Internal grinding		Kw	1.1
Work head motor power		Kw	1.5
Gross weight		T	5.8
Packing dimension		cm	372x200x205

Standard accessories:

Wheel flange

Balancing arbor

Wheel exactor

Coolant tank

Working lamp

Tool box and tools

Wheel dressor stand not including diamond pen

Standard grinding wheel

Leveling wedge and bolt

Standard electro magnetic chuck

Optional accessories:

Magnetic separator

Coolant tank with paper filter

Coolant with magnetic and paper filter

Wheel balancing stand

Close type steady rest

Radial wheel dresser

2 axis indicator

Company information:
FAQ:
1: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.
2:What kind of controllers do you use on machines?
A :Siemens, GSK, Fanuc, Syntec etc. You can choose as your request.
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me model or technical parameter you need, we can provide machine with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight.

---
